Figure 15 V6-173 (2.8L) PFI, (Vin W)
Figure 15 V6-173 (2.8L) PFI, (Vin W)

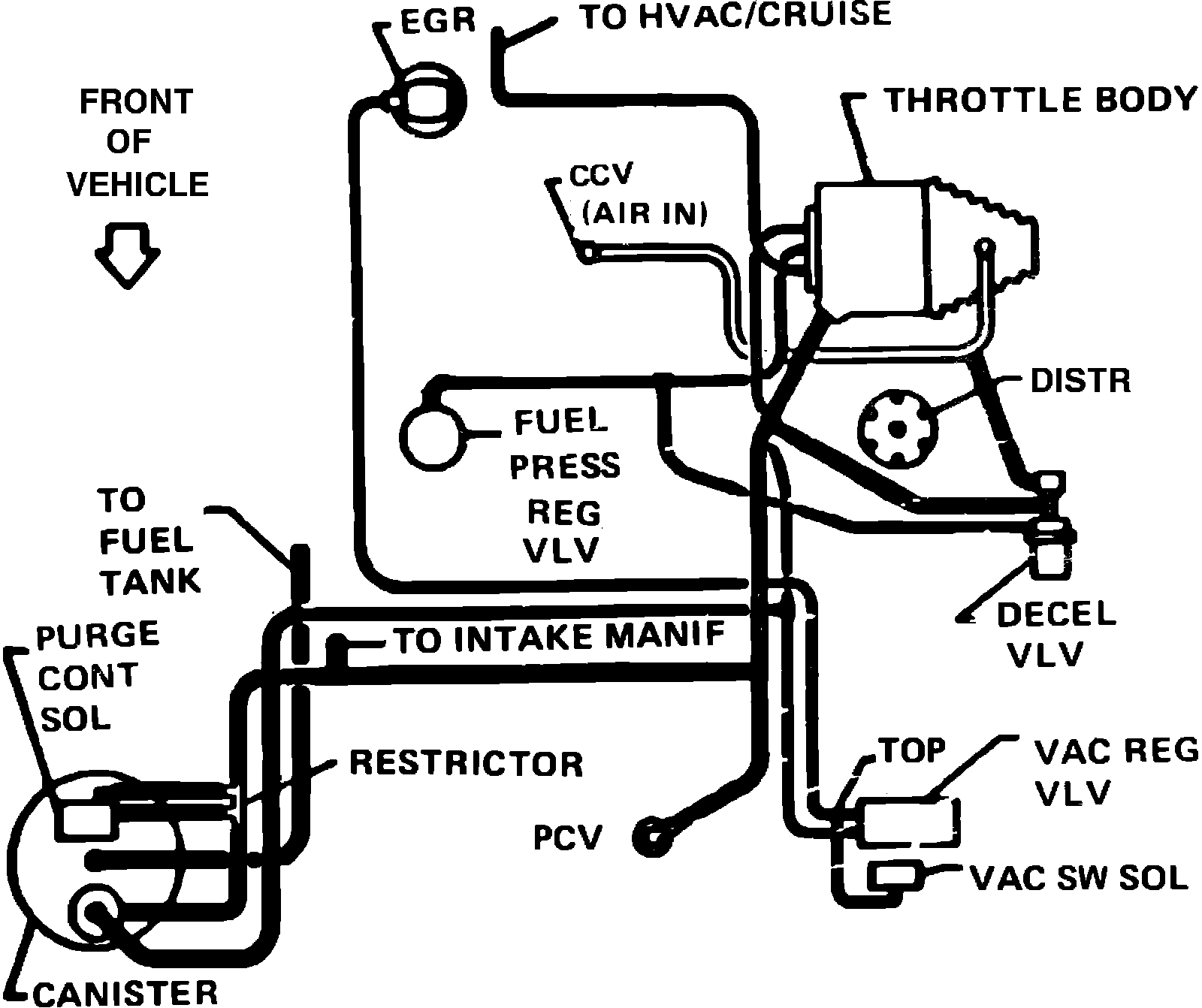

Fig. 15 Vacuum Hose Routing. 1985 V6-173 (2.8L) PFI, (VIN W):
