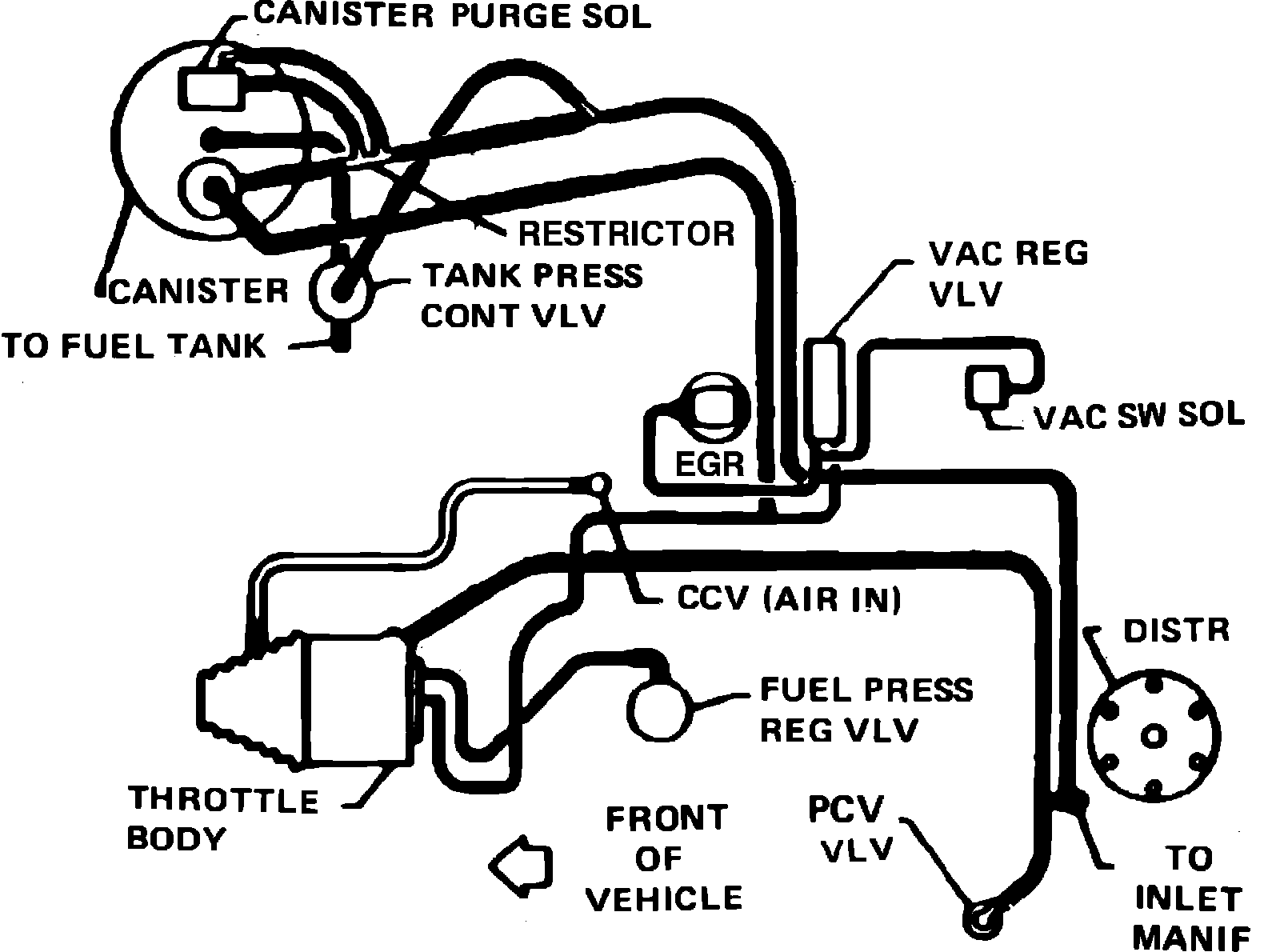

Figure 14 V6-173 (2.8L) PFI With A/T, (Vin S)
Figure 14 V6-173 (2.8L) PFI With A/T, (Vin S)
Fig. 14 Vacuum Hose Routing. 1985 V6-173 (2.8L) PFI With A/T, (VIN S:
