Ignition & Check Engine Light
Ignition & Check Engine Light

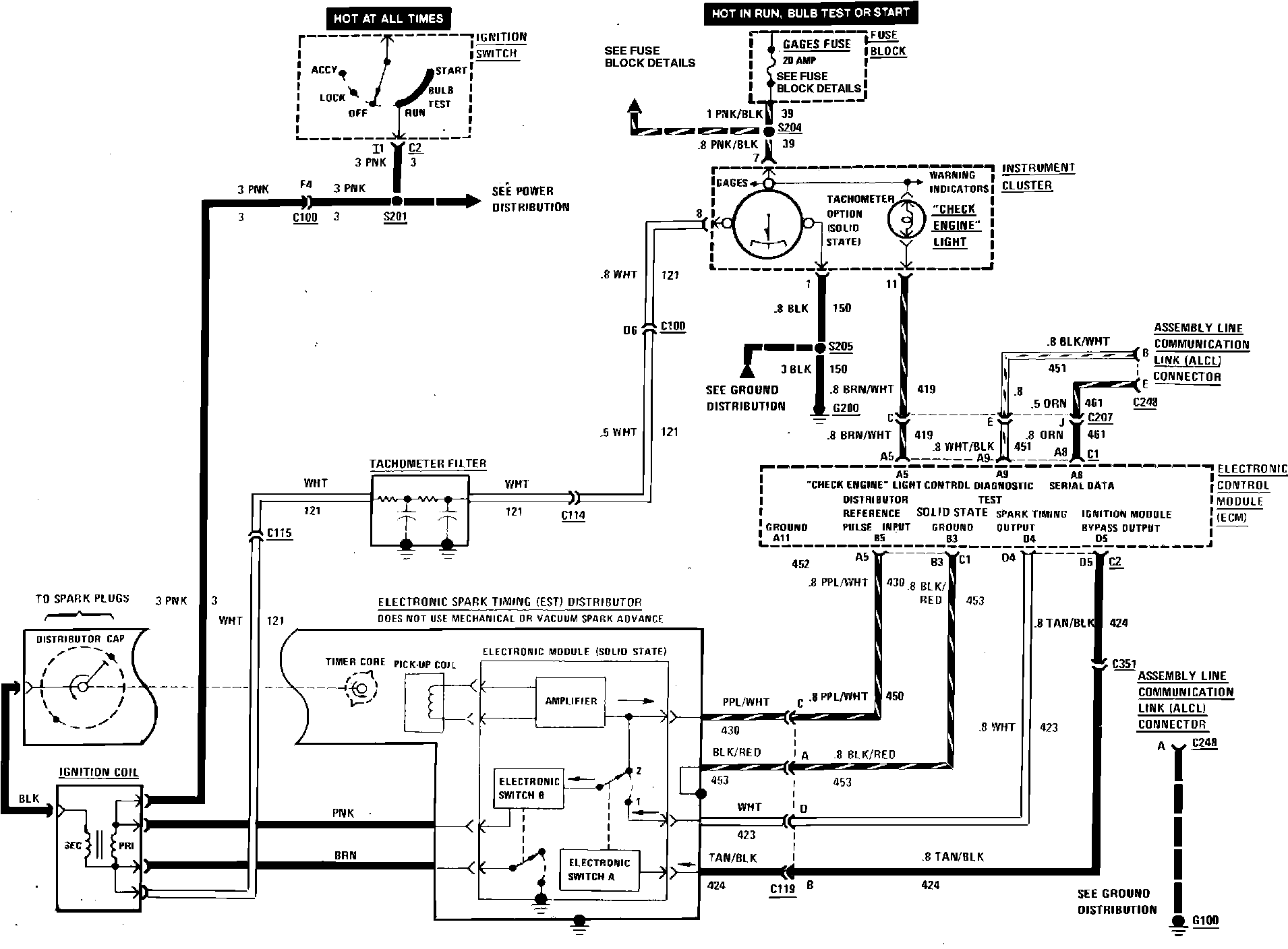

Electronic Fuel Injection (Ignition & Check Engine Light) Wiring Circuit:
