Battery Junction Block

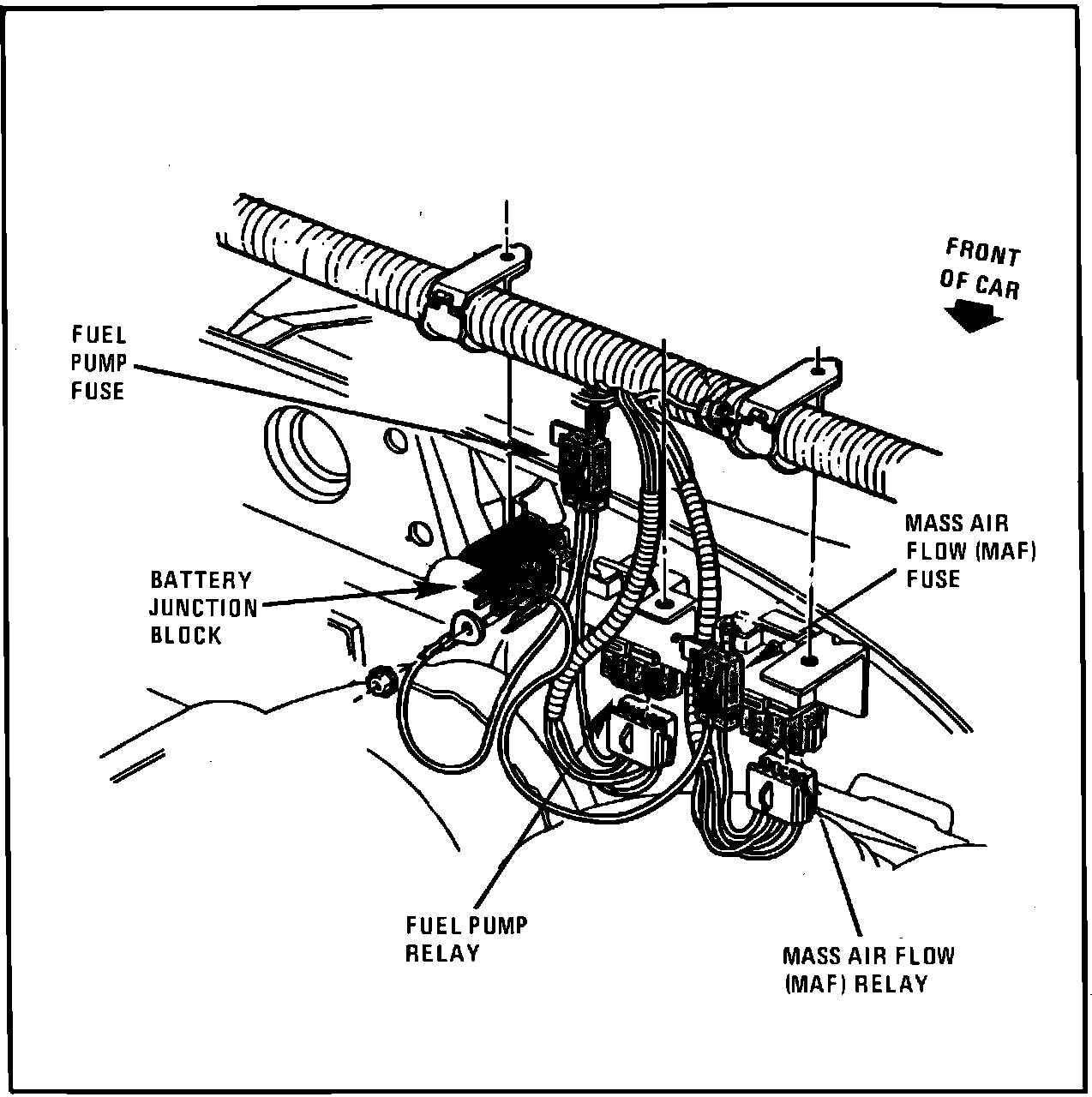

LH Front Of Dash Panel.:




LH Front Engine Side Of Dash Panel

Applicable to: 1985 Cimarron

LH Front Of Dash Panel.:




LH Front Engine Side Of Dash

Applicable to: 1985 Cavalier & Firenza 4-121/2.0L Engine
