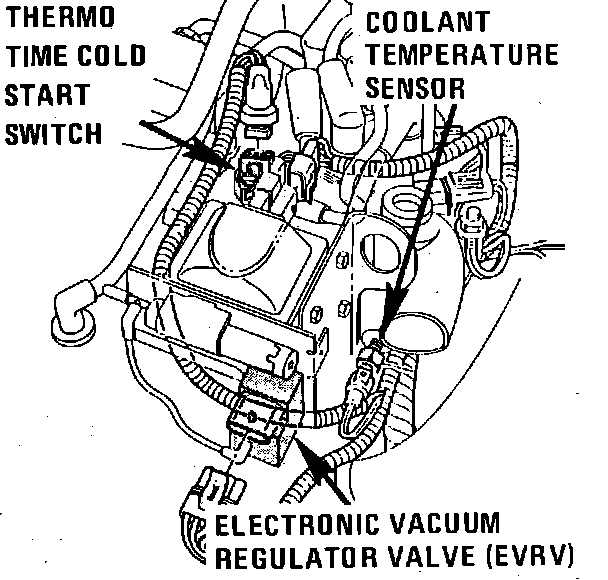

Thermo-Time Cold Start Switch

Upper LH Front Of Engine Compartment.:




LH Front Of Engine Cowl

Applicable to: 1985 Cimarron V6-173/2.8L Engine
