Digital Instrument Panel

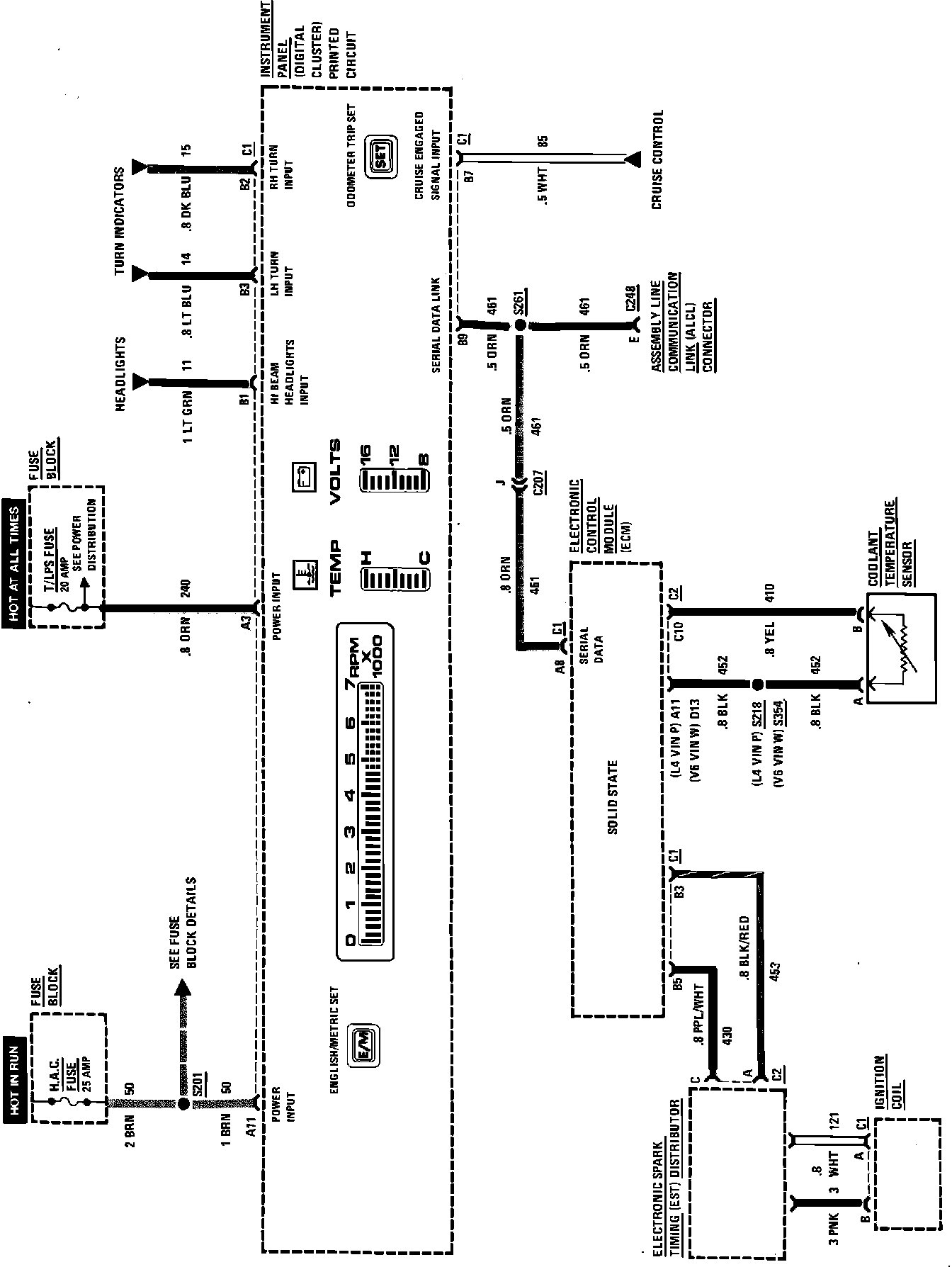

Digital Instrument Panel Wiring Circuit (Part 1 of 4):

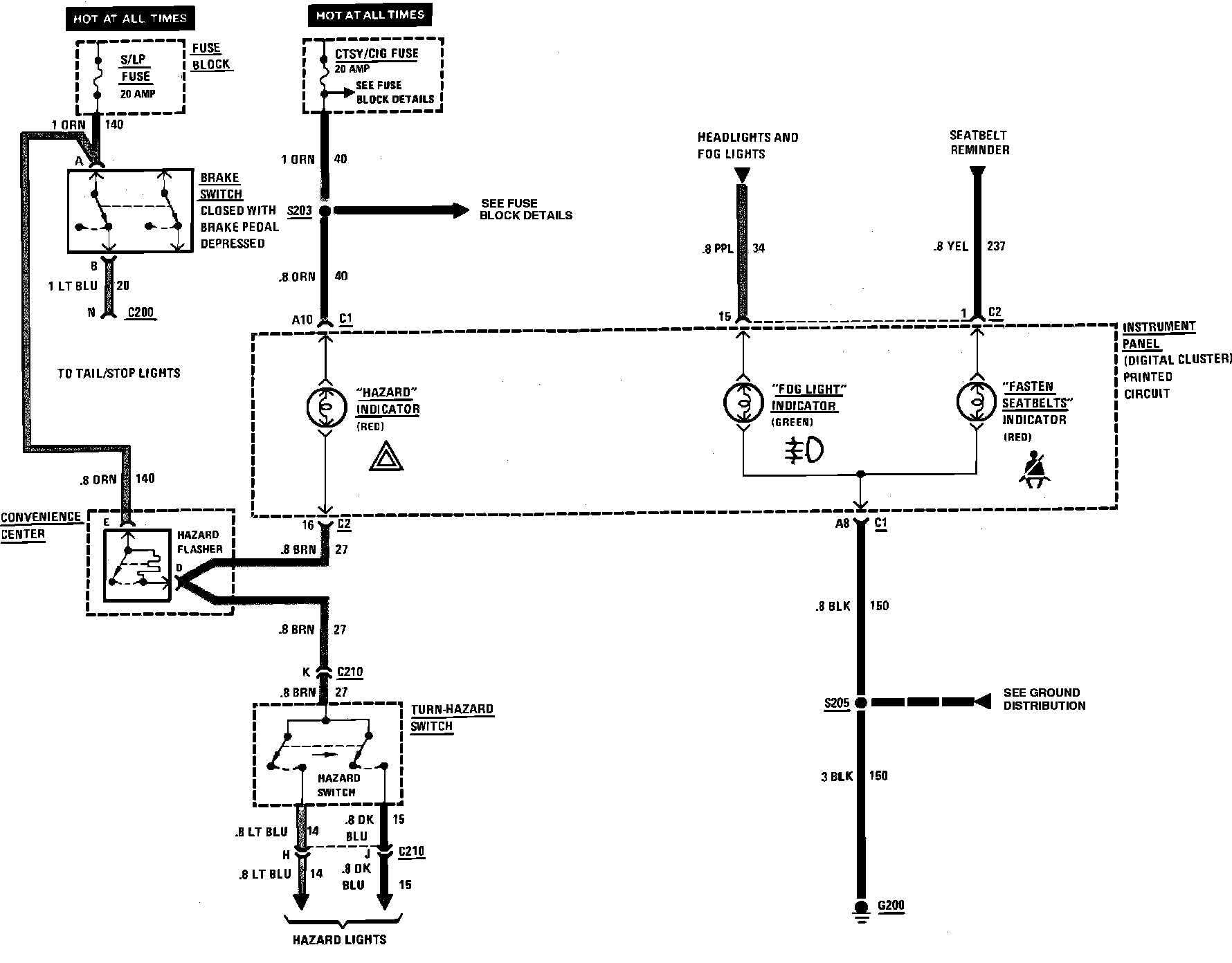

Digital Instrument Panel Wiring Circuit (Part 2 of 4):

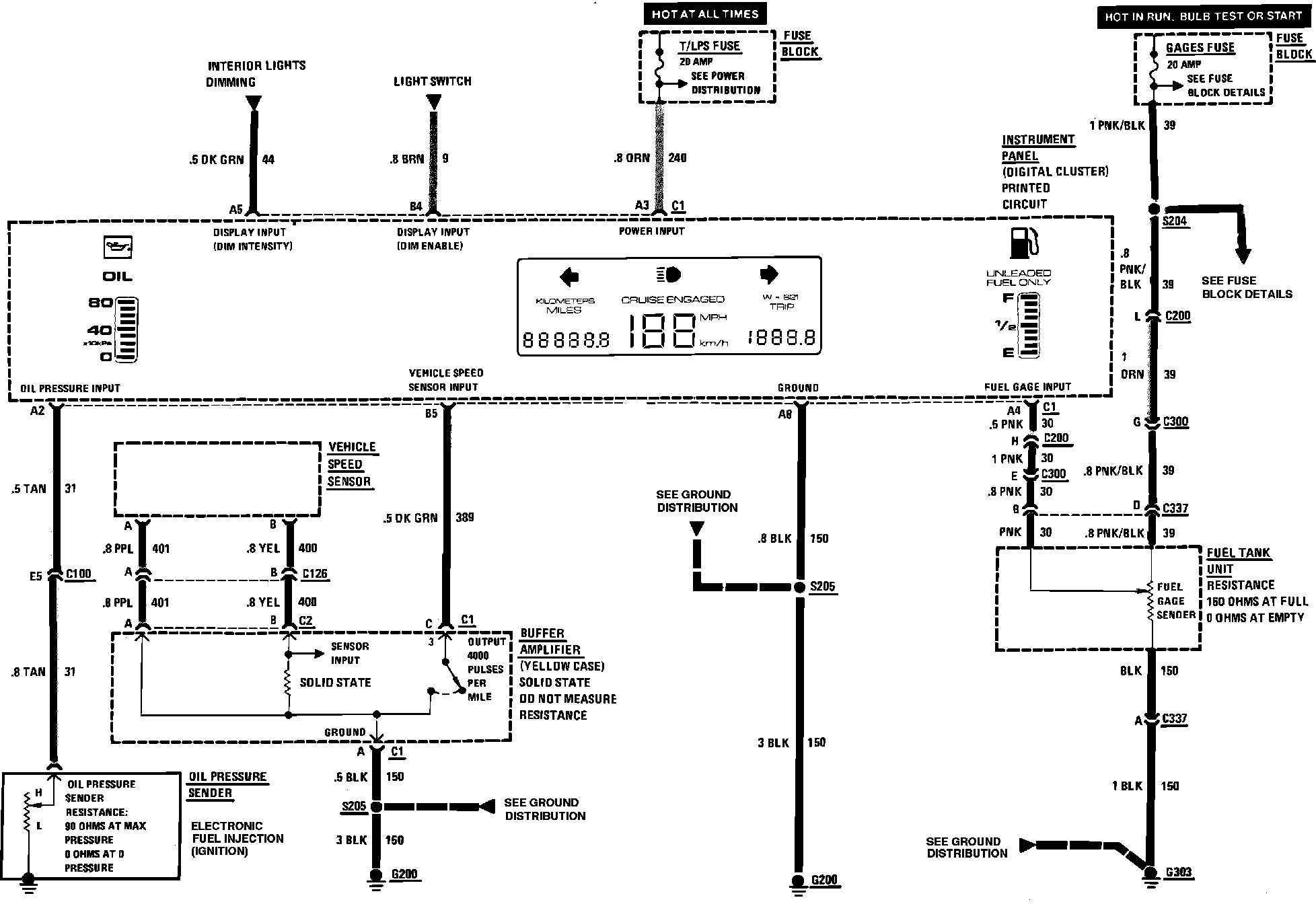

Digital Instrument Panel Wiring Circuit (Part 3 of 4):

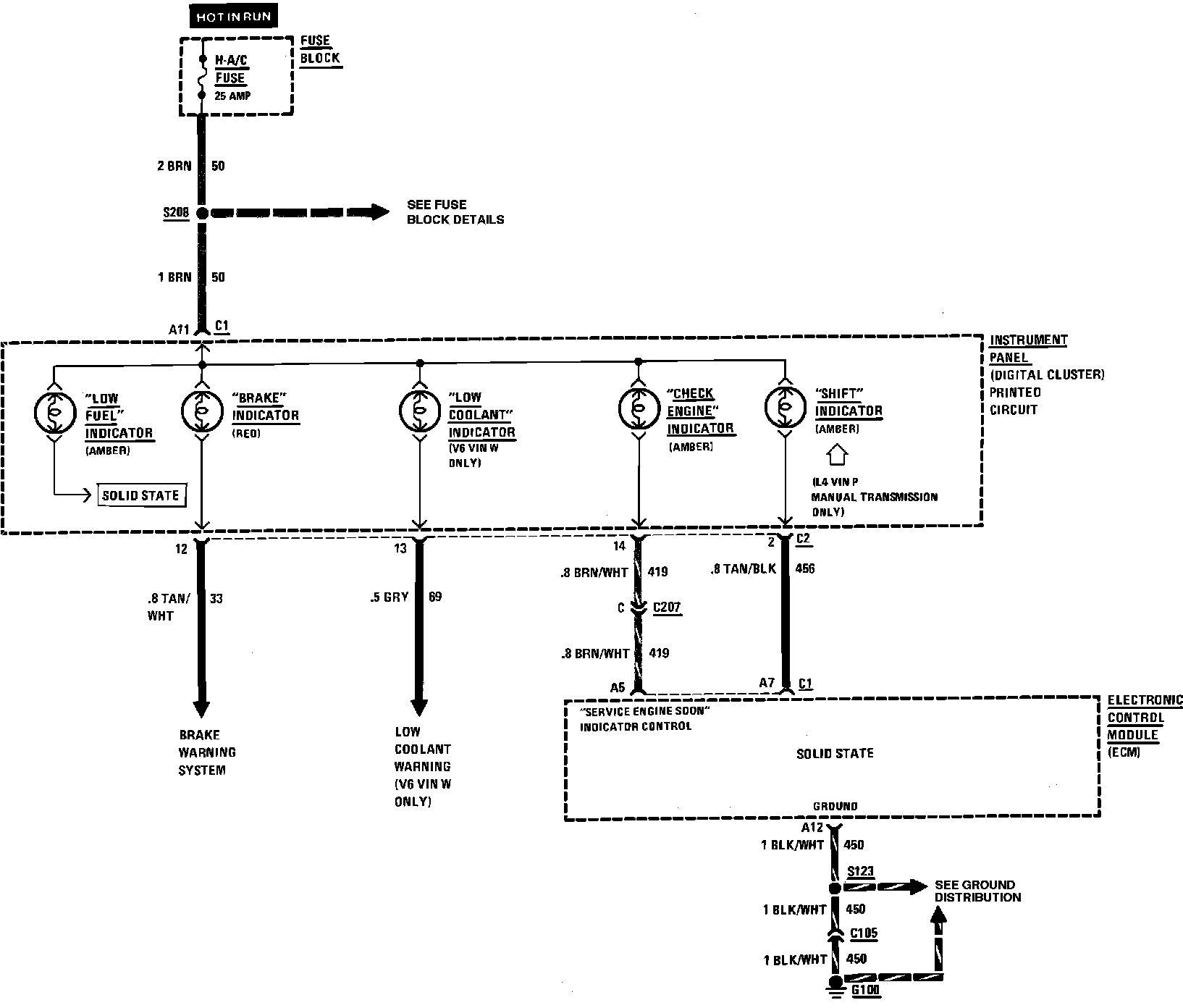

Digital Instrument Panel Wiring Circuit (Part 4 of 4):
