Compressor Clutch Diode HVAC: Locations

LH Side Of Engine.:

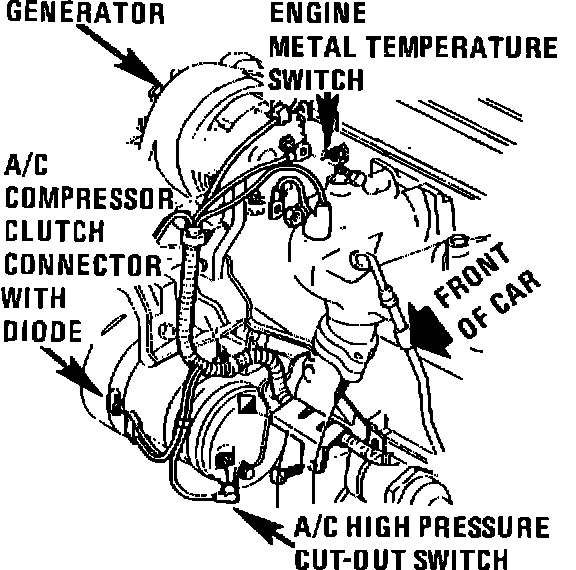

In A/C Compressor Clutch Connector

Applicable to: 1985 4-121/2.0L Engine

Lower LH Front Of Engine.:

In A/C Compressor Clutch Connector

Applicable to: 1985 V6-173/2.8L Engine

Lower LH Front Of Engine.:

In A/C Compressor Connector

Applicable to: 1985 Cavalier, Cimarron & Firenza V6-173/2.8L Engine
