Engine Mount: Service and Repair

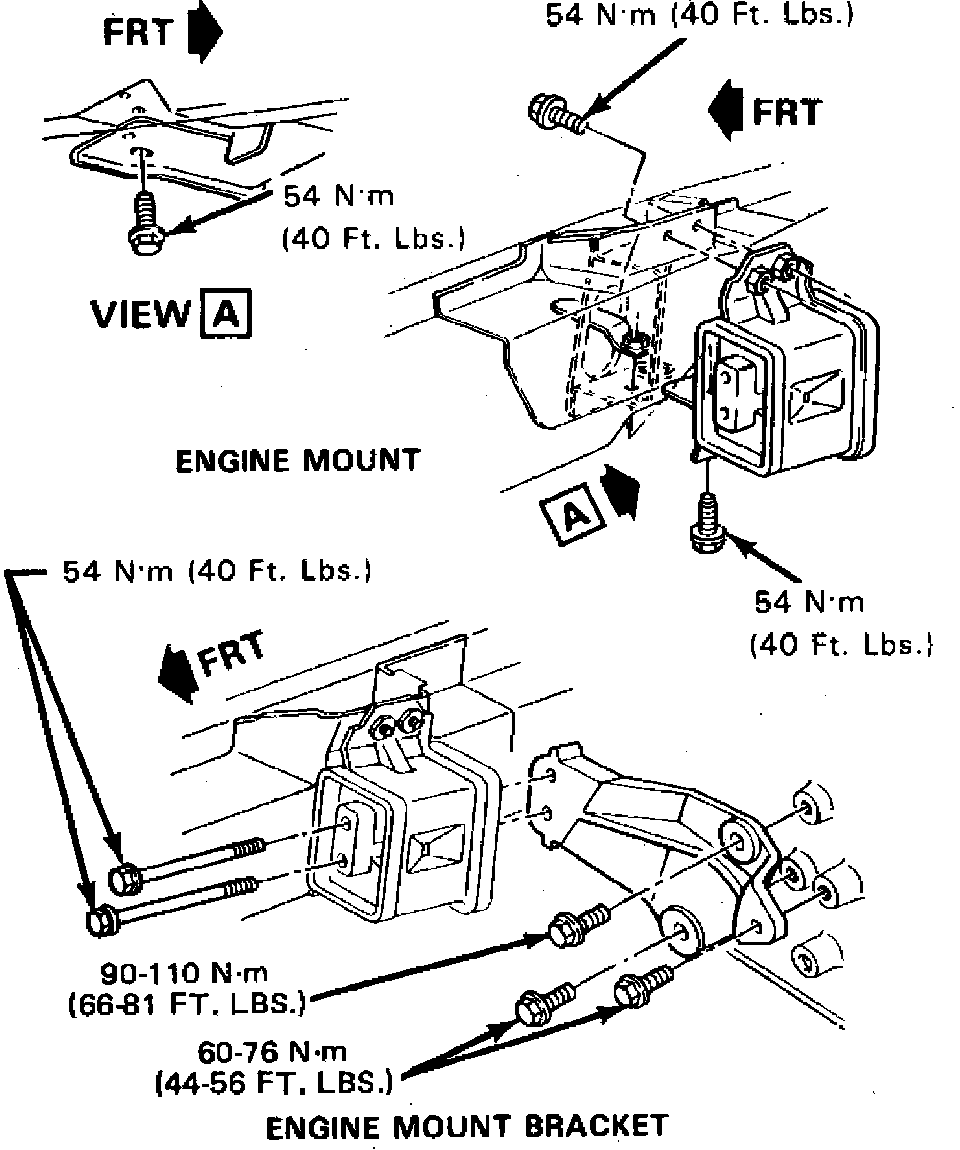

Fig. 1 Front engine mount:

FRONT MOUNT
1. Disconnect battery ground cable.
2. Remove engine mount nuts, then raise and support vehicle.
3. Support engine with suitable jack.
4. Remove inner fender shield.
5. Remove and discard engine mount bolts, Fig. 1.
6. Remove engine mount from vehicle.
7. Reverse procedure to install, using new engine mount bolts. Remove alignment bolt. If excessive force is required to remove alignment bolt, loosen transaxle adjusting bolts to align power train components.

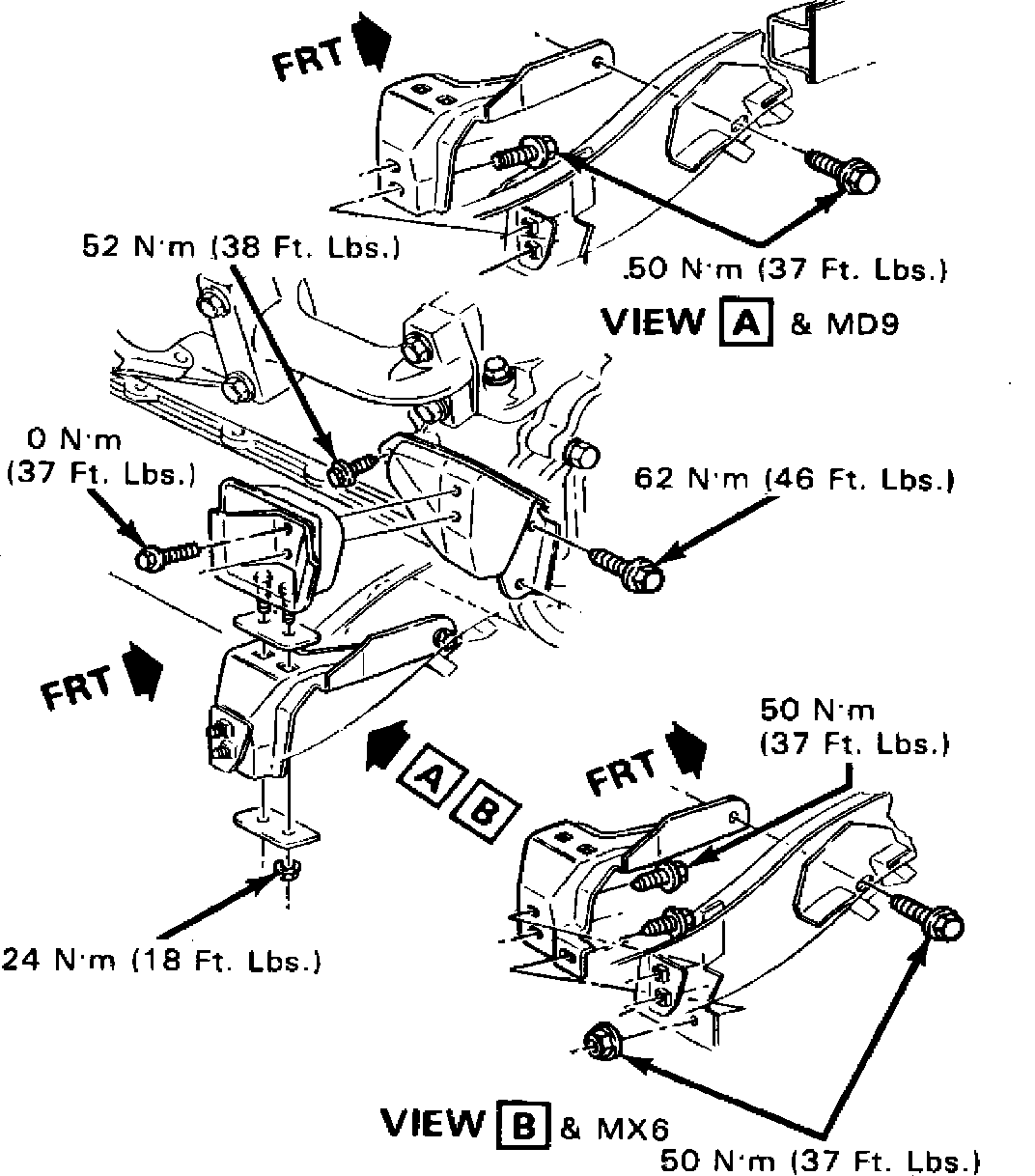

Fig. 2 Rear engine mount:

REAR MOUNT
1. Disconnect battery ground cable, then raise and support vehicle.
2. Support engine with suitable jack.
3. Remove motor mount nuts and attaching bolts, Fig. 2.
4. Reverse procedure to install.
