Cimarron V6-173 2.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Trunk / Liftgate
>>
System Diagram
>>
Tailgate Release
Tailgate Release

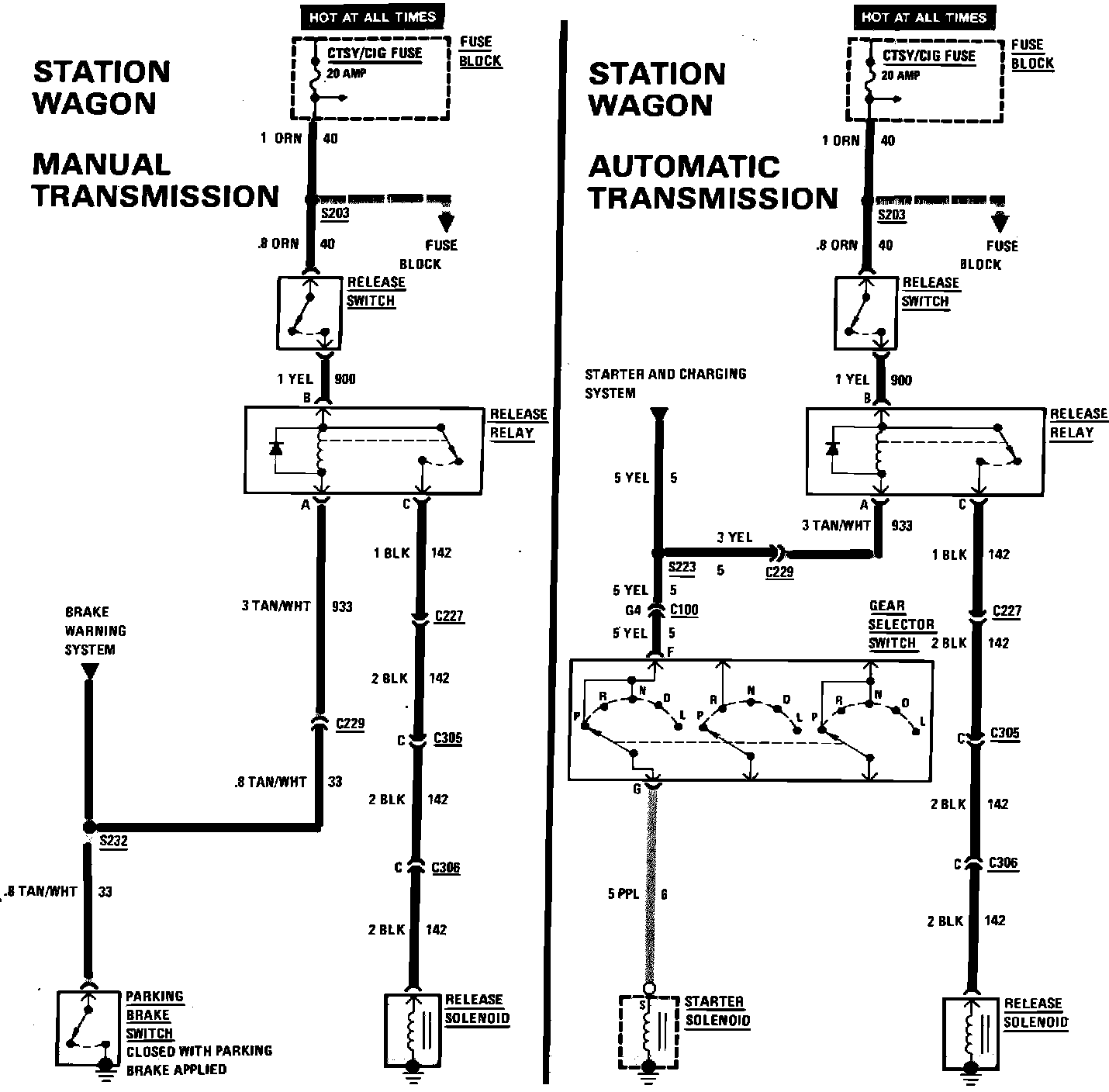

Tailgate Release Wiring Circuit:
