Shift Indicator - A/T

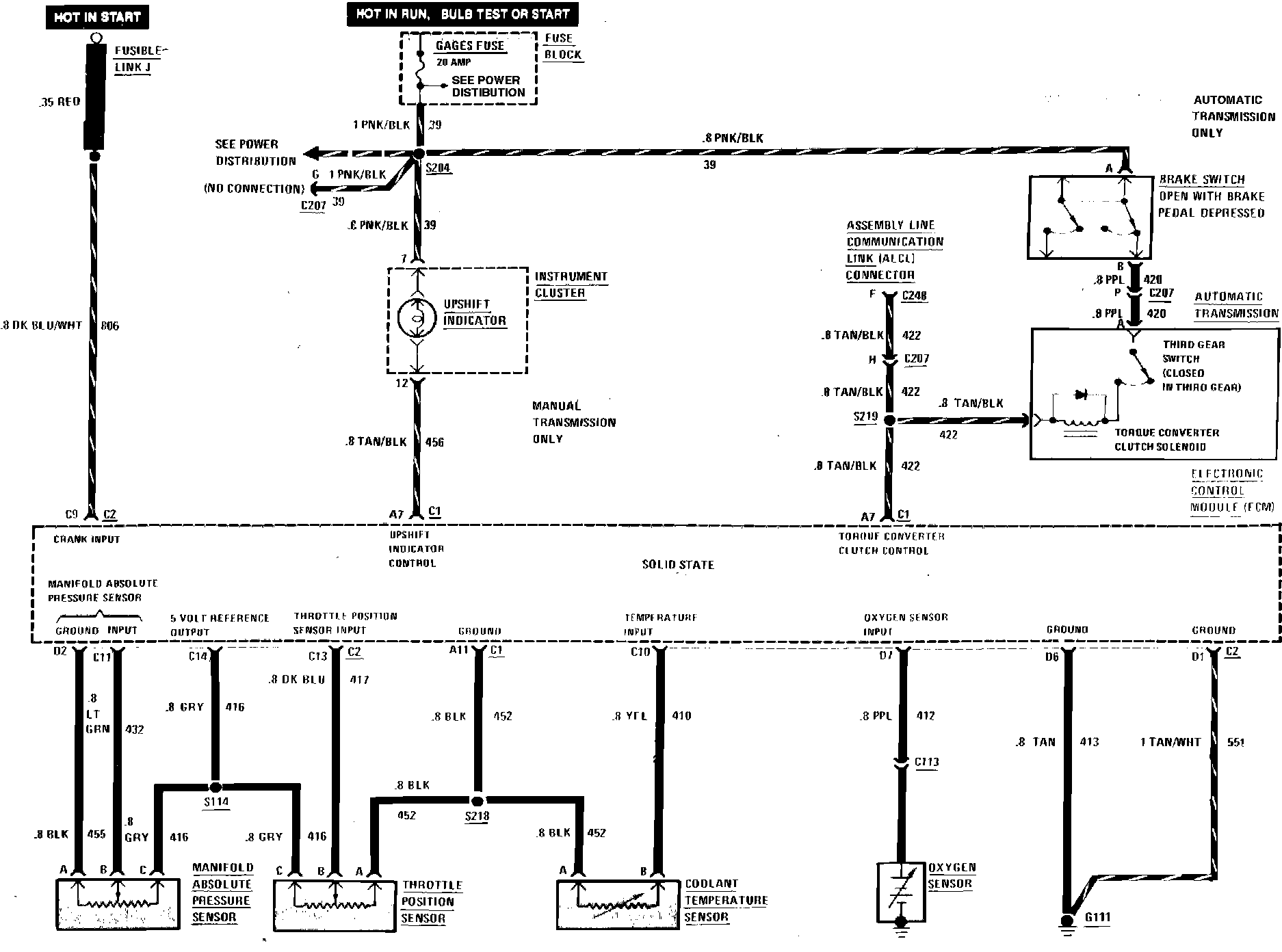

Electronic Fuel Injection (Emission Data Sensor, Emission Control, Torque Converter Clutch & Up Shift Indicator) Wiring Circuit:
