Idle Speed Control (ISC) & Vehicle Data Sensors

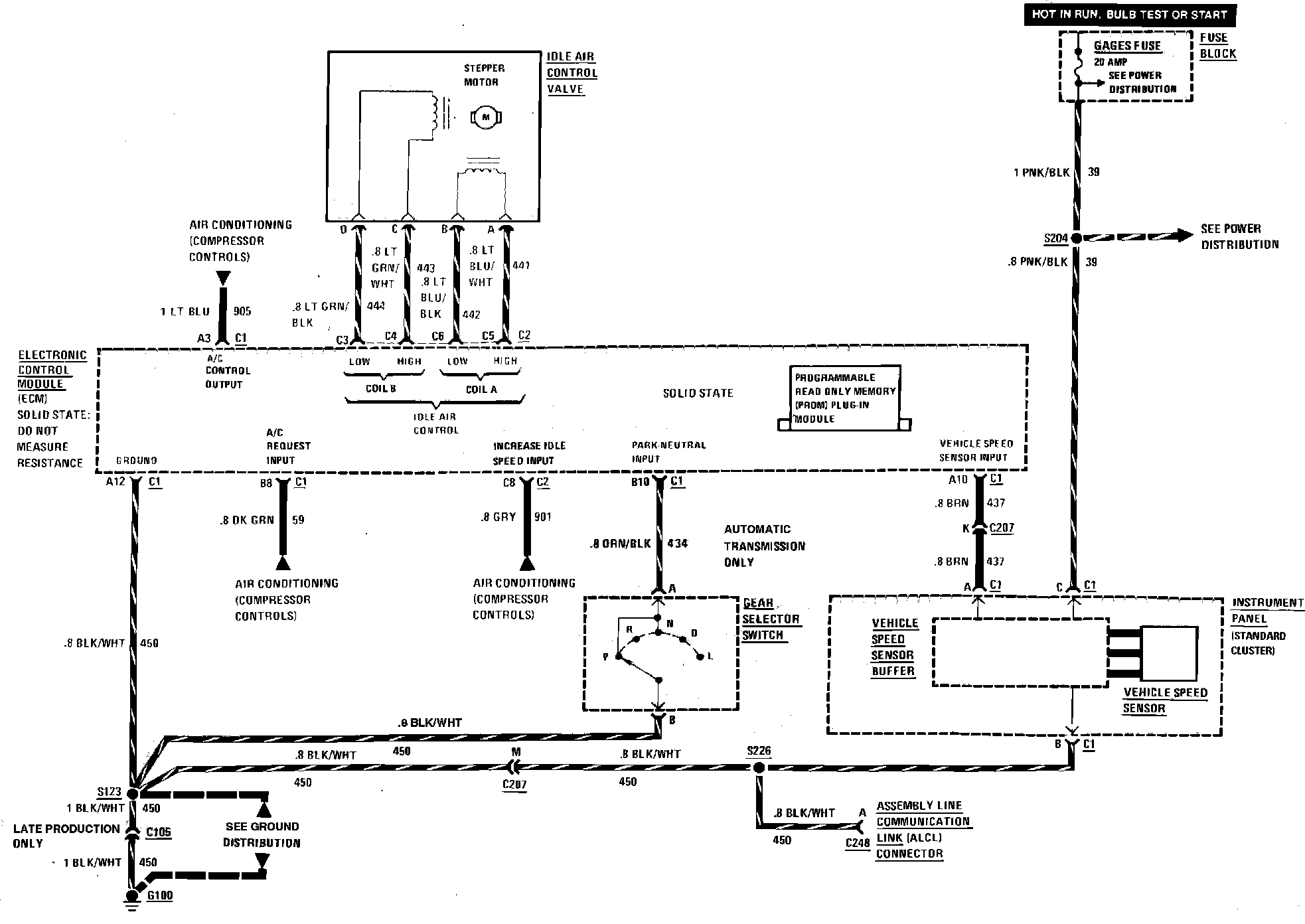

Electronic Fuel Injection (Idle Speed Control & Vehicle Data Sensor) Wiring Circuit:
