Turn Signals

Front Marker, Park, Hazard, Stop & Turn Lamp Wiring Circuit:

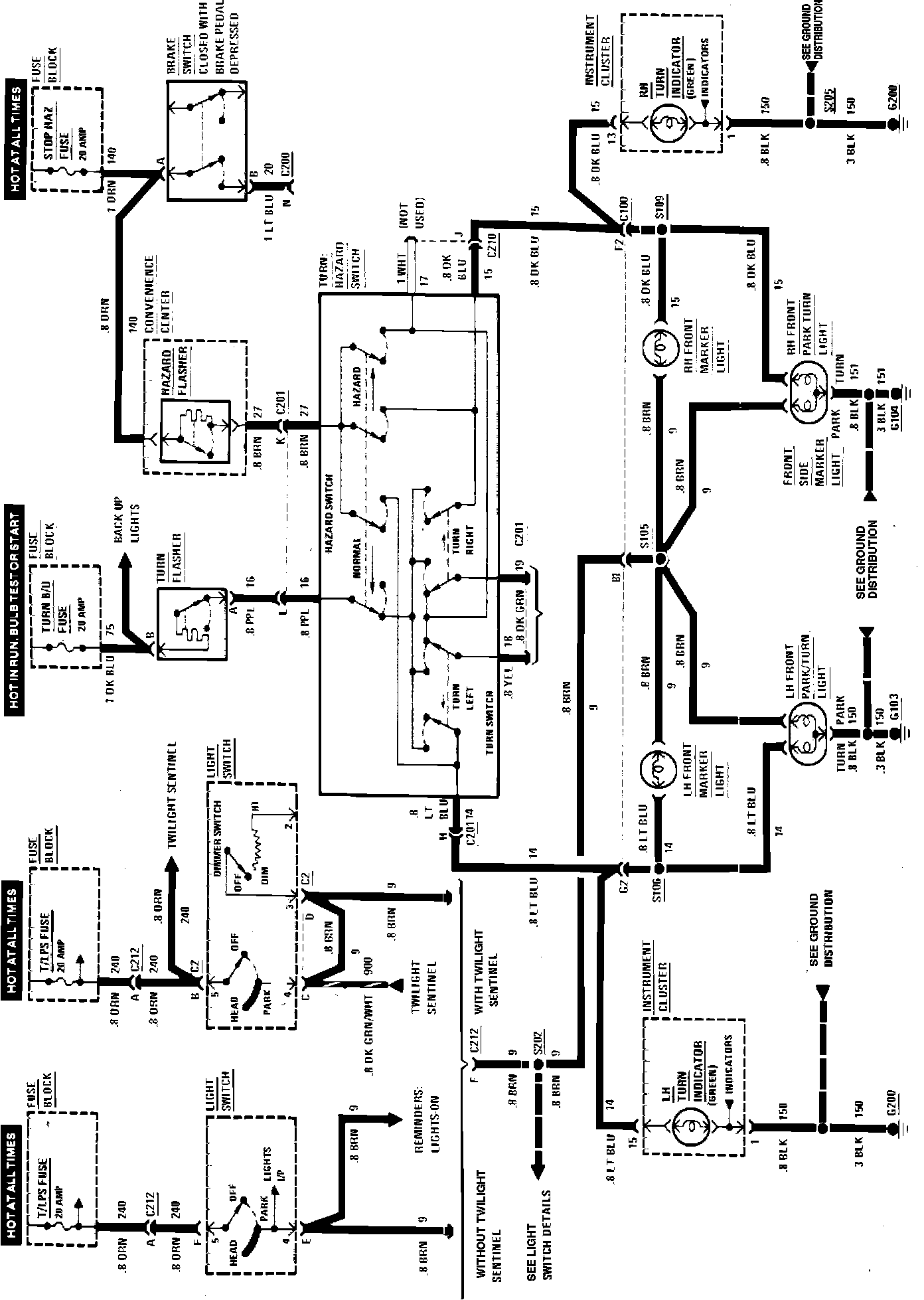

Front Marker, Park, Hazard, Stop & Turn Lamp Wiring Circuit:
