Less Power Door Locks (Part 1 of 2)
Less Power Door Locks (Part 1 of 2)

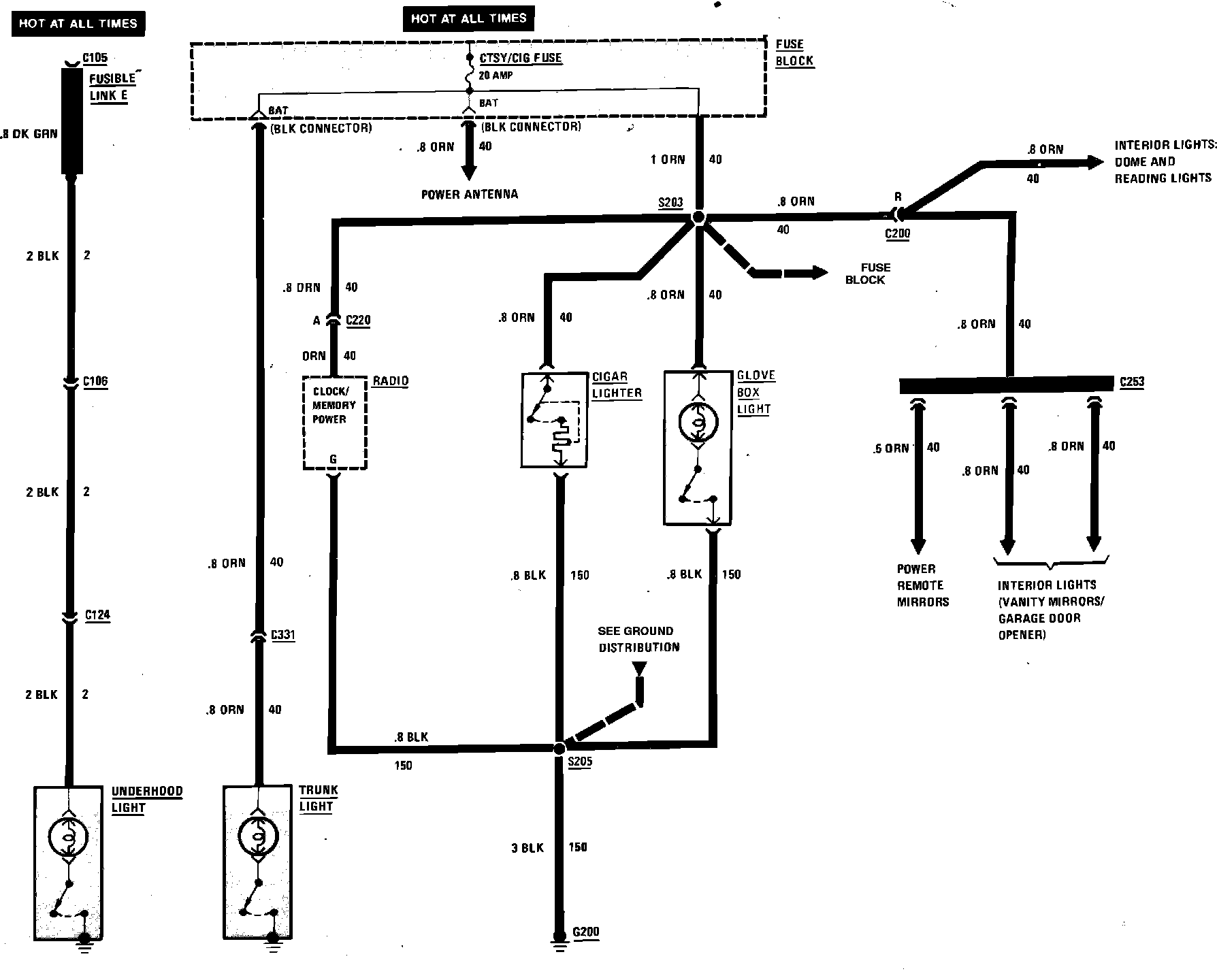

Cigar Lighter & Interior Lights & Garage Door Opener Wiring Circuit (Less Power Door Locks):
