With Twilight Sentinel

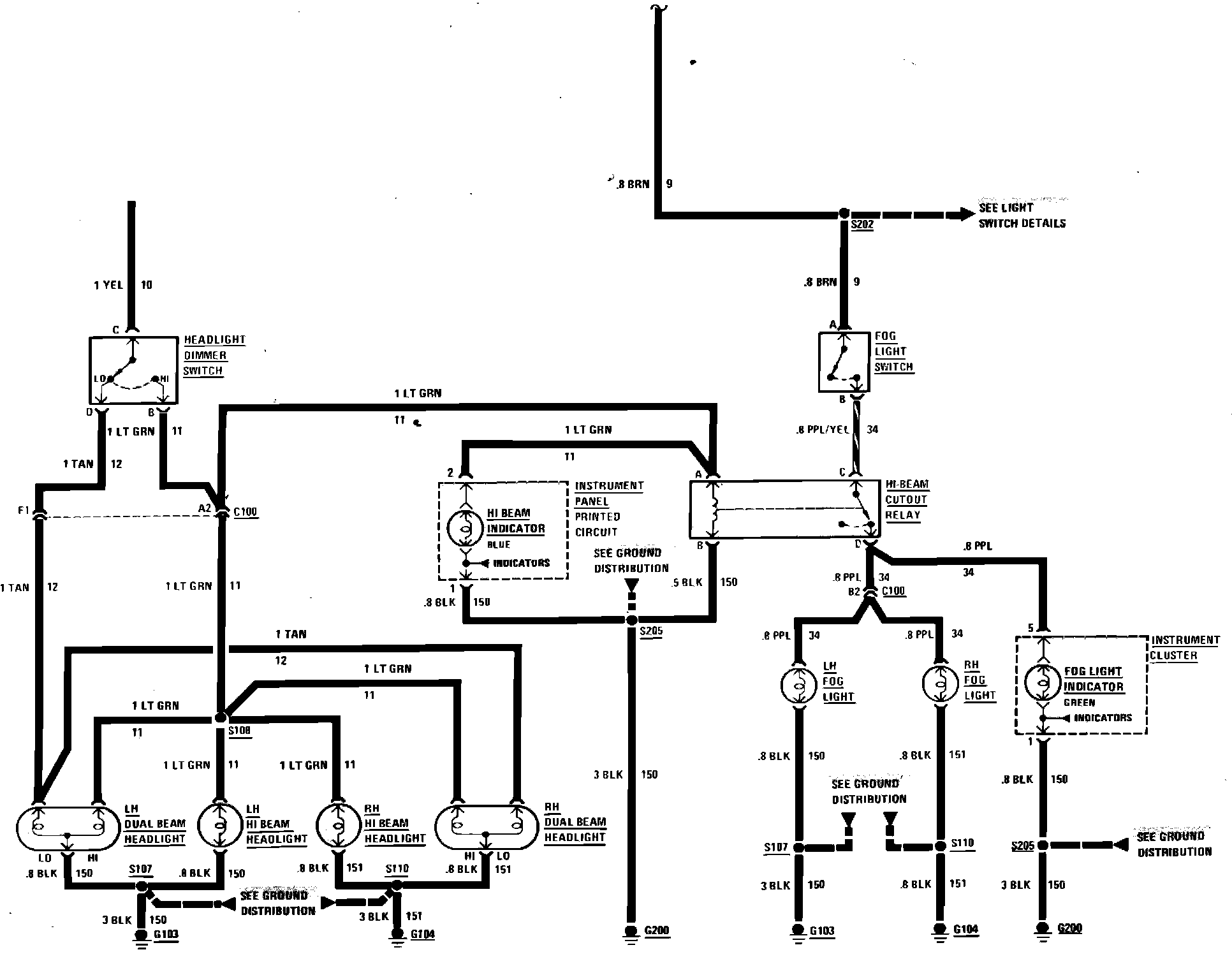

Headlamp Wiring Circuit (With Twilight Sentinel):

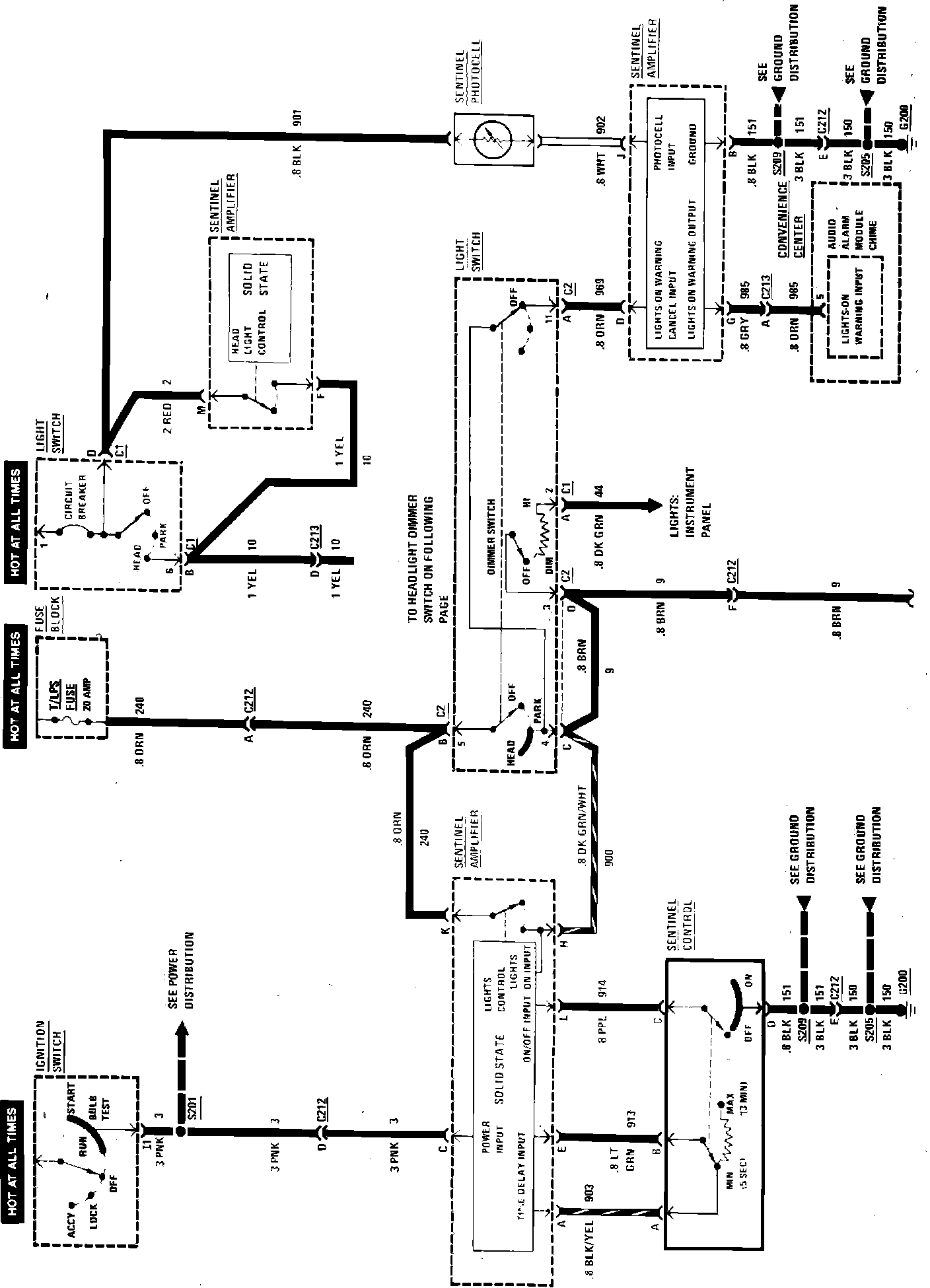

Headlamp Wiring Circuit (With Twilight Sentinel):
