Instrument Panel Illumination
Instrument Panel Illumination

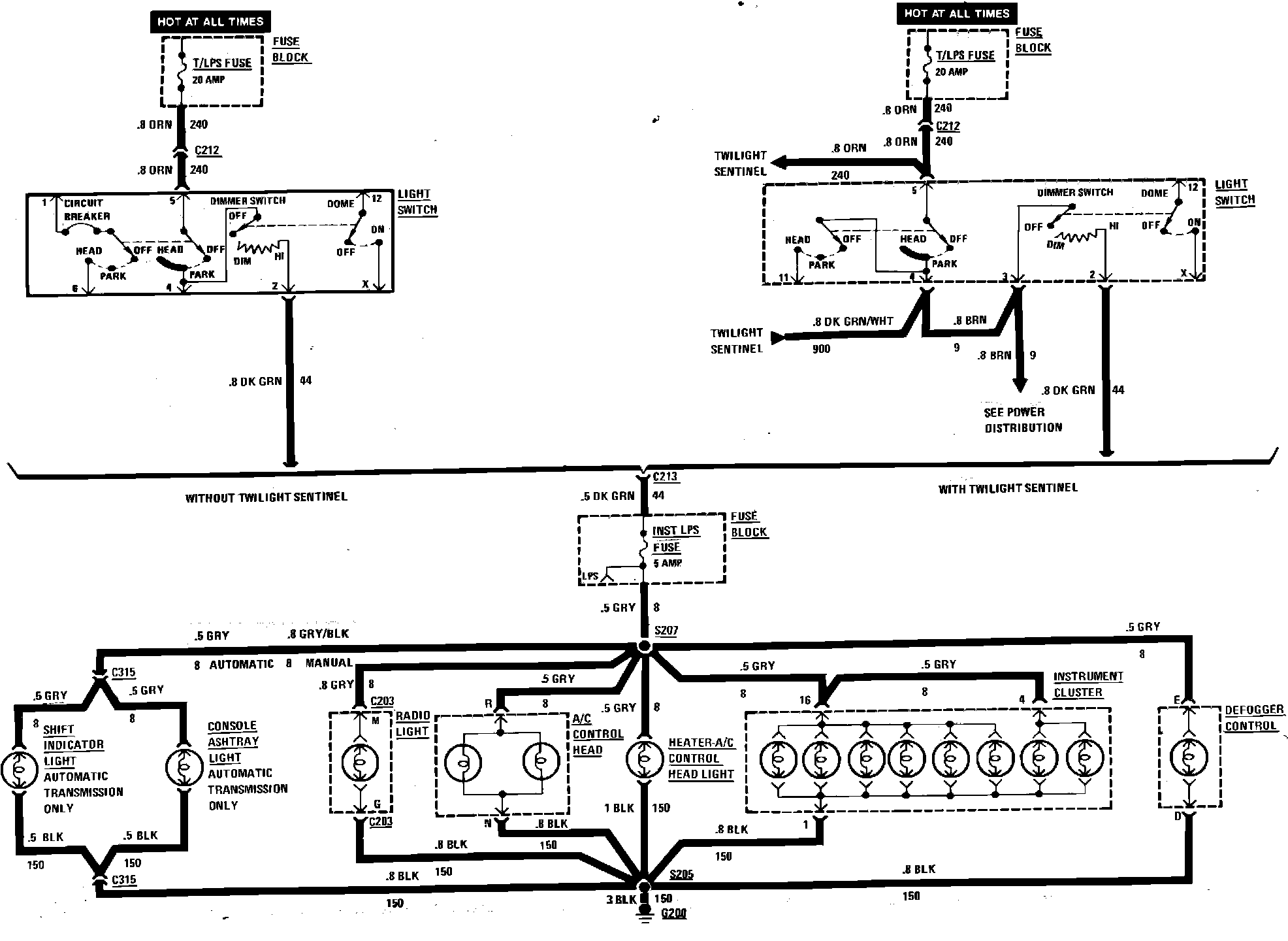

Instrument Panel Illumination Wiring Circuit:
