Ignition Key, Lights On & Seat Belt Warning

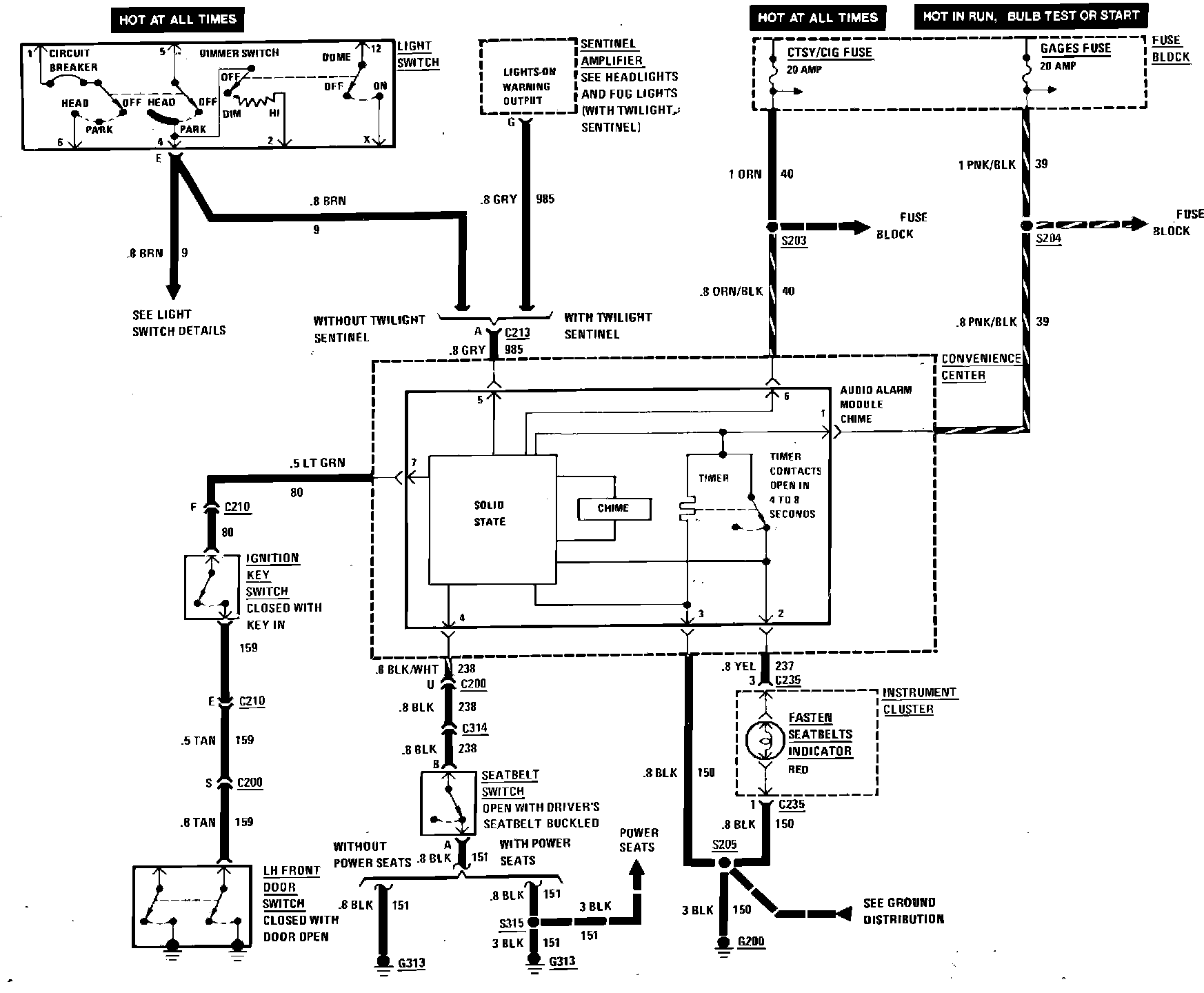

Ignition Key, Lights On & Seatbelt Warning Wiring Circuit:
