Malfunction Indicator Lamp

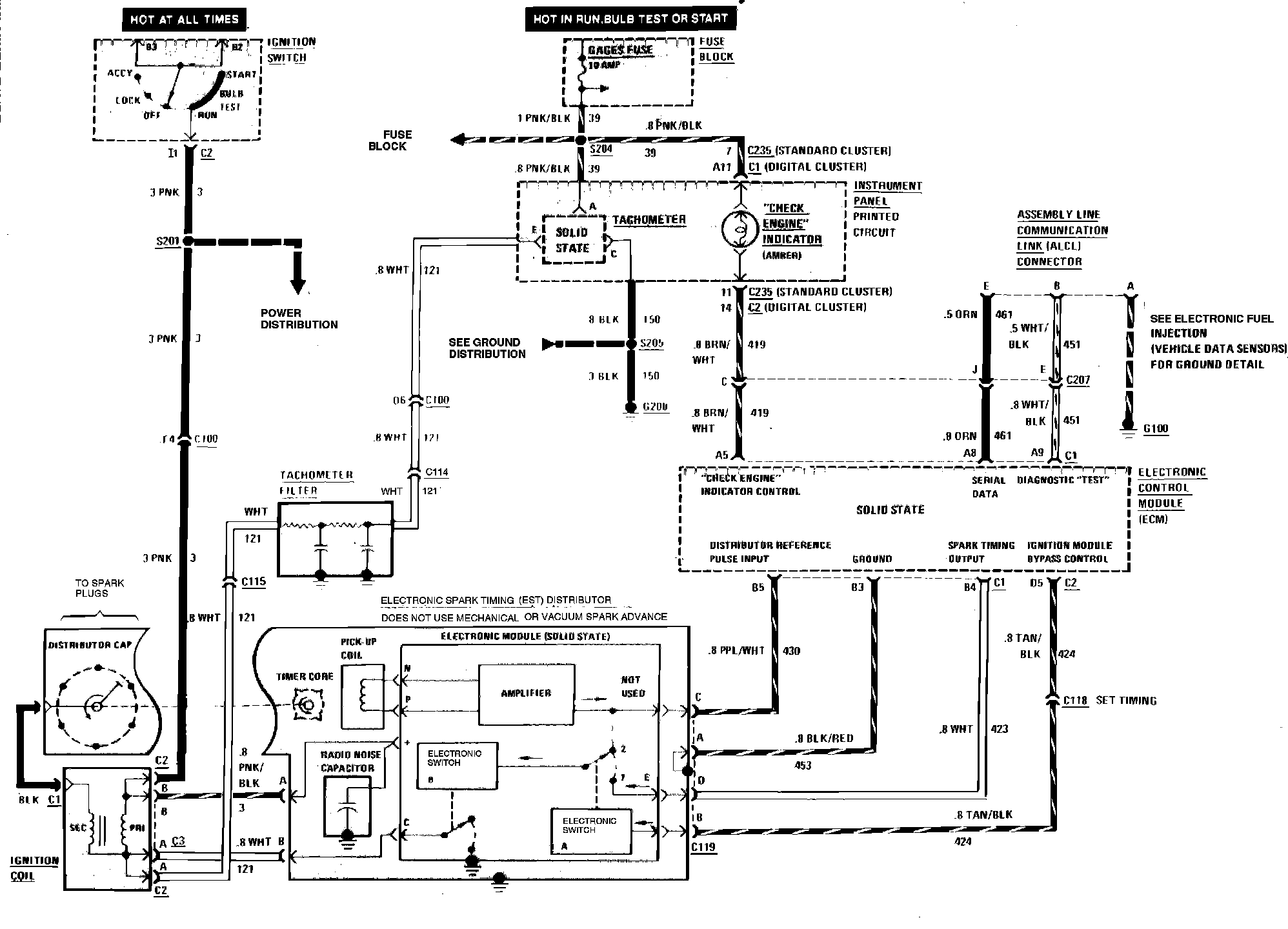

Multiport Fuel Injection (Check Engine Or Service Soon Indicator & Ignition) Wiring Circuit:
