A/C Compressor, Air Flow Sensor & Emission Control

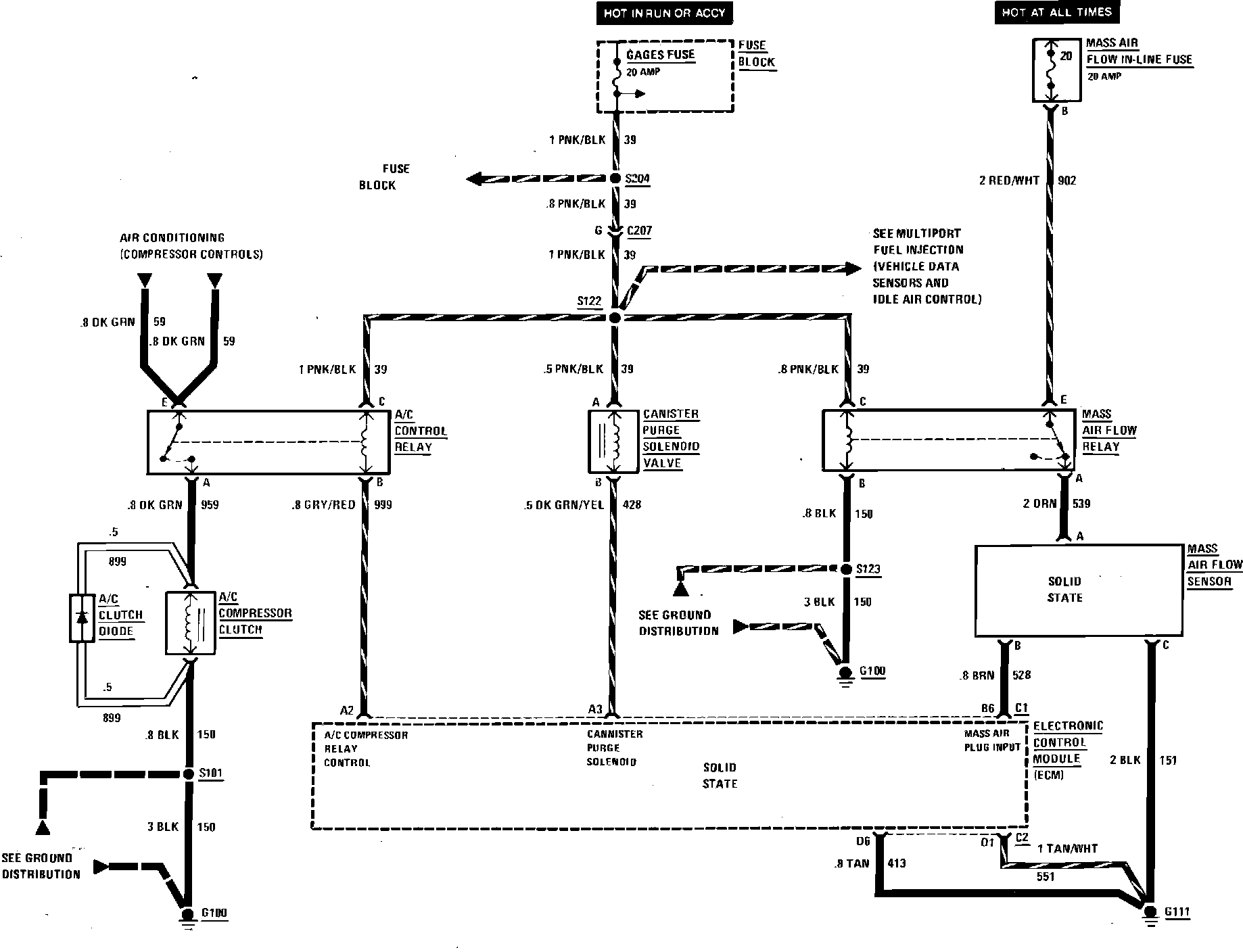

Multiport Fuel Injection (A/C Compressor, Air Flow Sensor & Emission Control) Wiring Circuit:
