Cadillac
>>
1985
>>
Cimarron V6-173 2.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heated Glass Element
Heated Glass Element

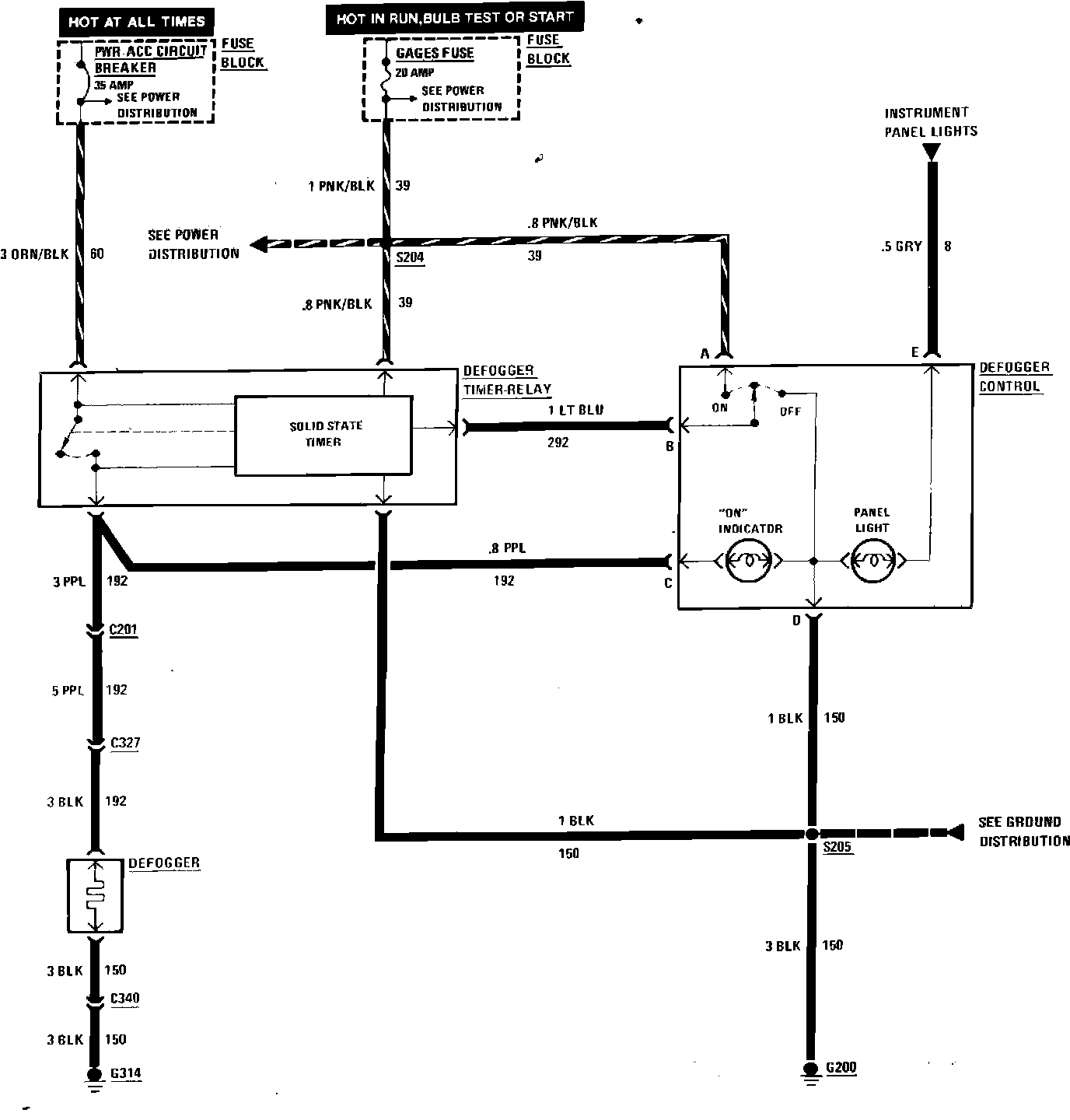

Rear Window Defogger Wiring Circuit:
