Coolant Fan Pressure Switch
Coolant Fan Pressure Switch

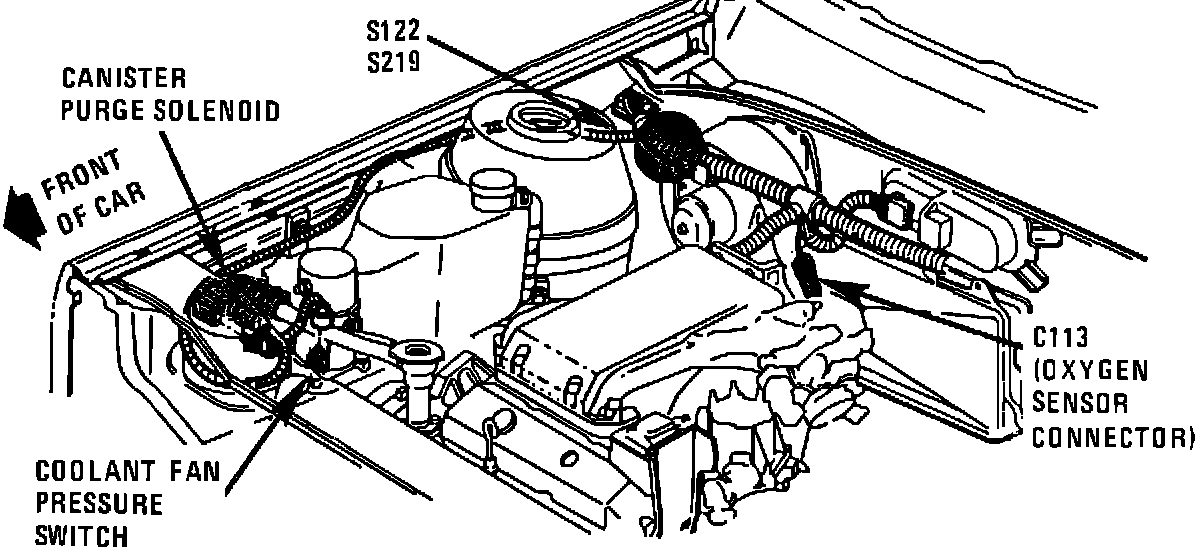

Engine Compartment.:
RH Front Corner Of Engine Compartment
Applicable to: 1985 Cimarron V6-173/2.8L Engine

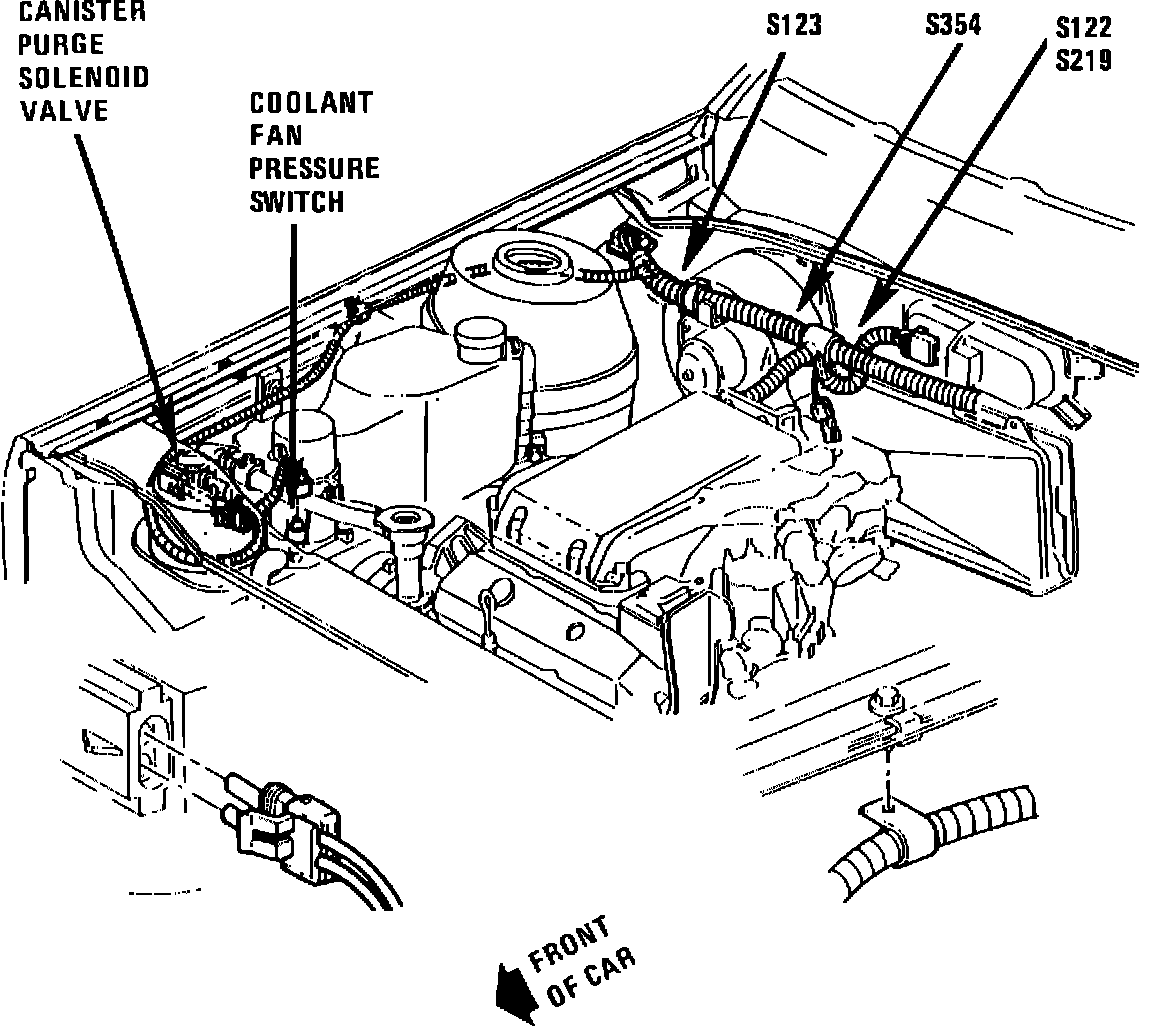

RH Side Of Engine Compartment.:
RH Front Corner Of Engine Compartment
Applicable to: 1985 V6-173/2.8L Engine
