Home >> Cadillac >> 1985 >> Cimarron V6-173 2.8L >> Repair and Diagnosis >> Cruise Control >> Diagrams >> Vacuum and Vapor Hose Diagrams >> Part 1 of 2

Part 1 of 2

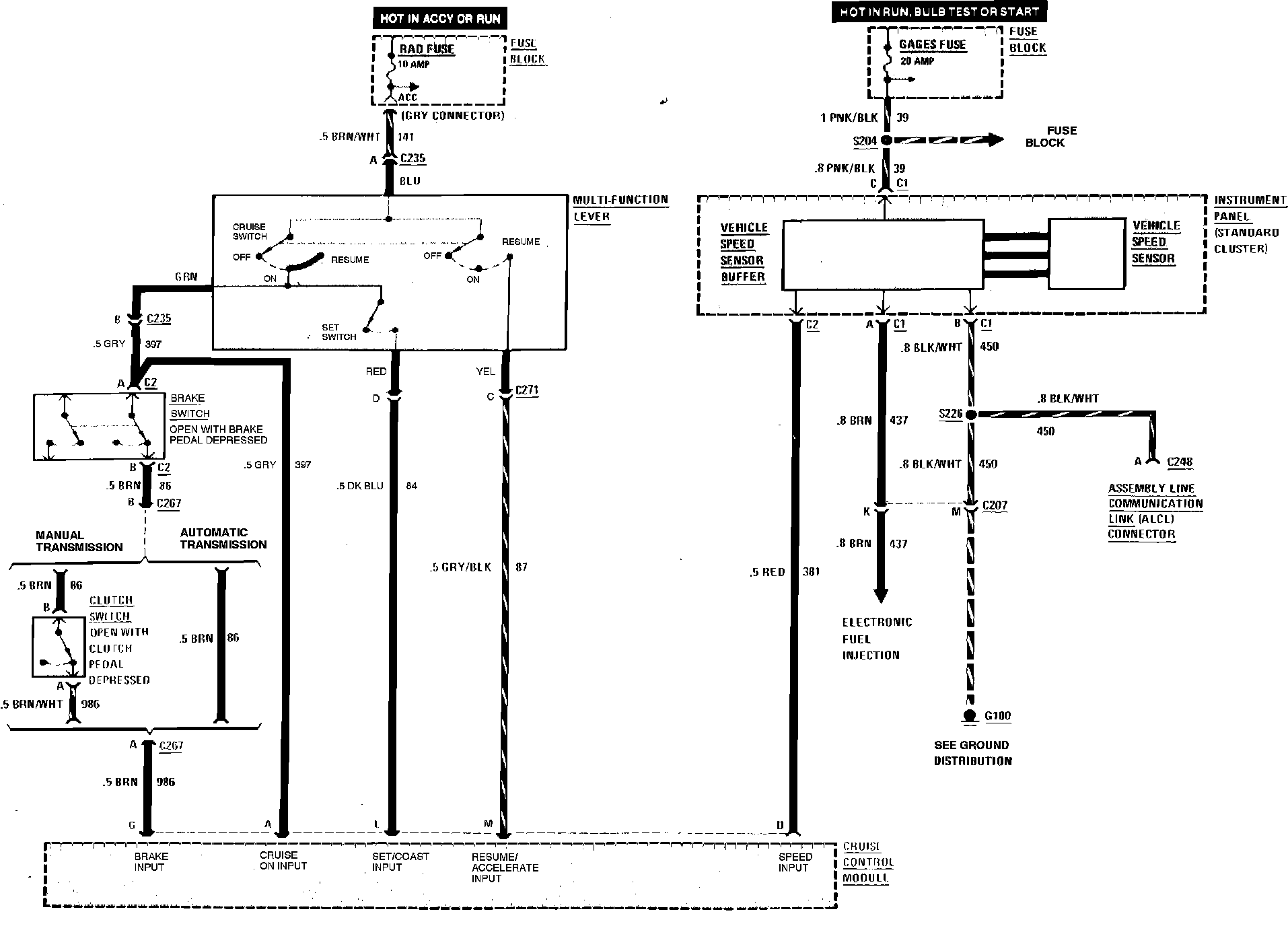

Cruise Control Vacuum & Wiring Circuit:
