Removal & Installation (DeVille & Fleetwood)

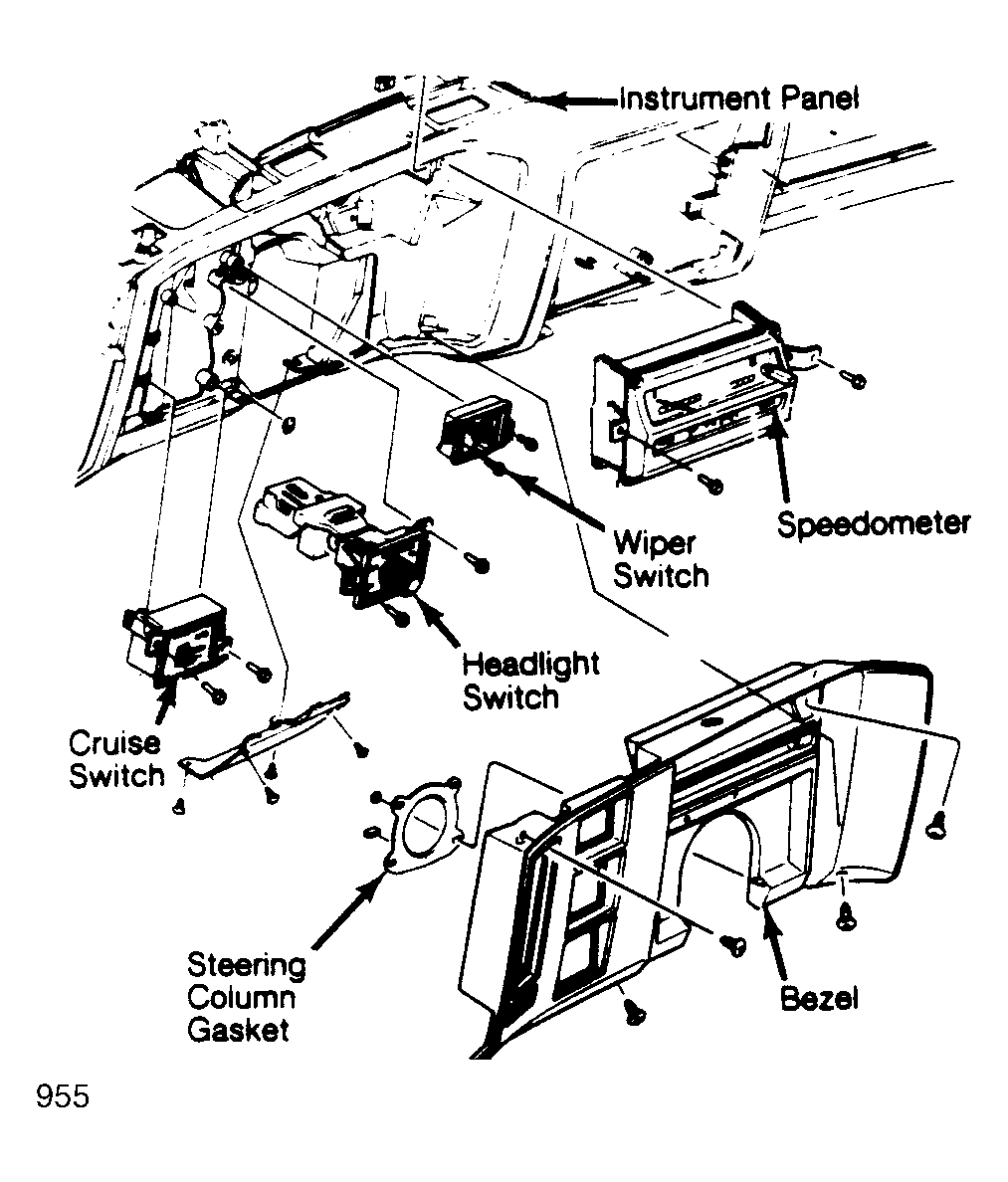

- Disconnect battery. Remove A/C vent knob and grille using puller (J-24612-01). Remove 6 screws retaining bezel to panel (one screw inside A/C vent). Remove 2 upper and 2 lower screws in steering column cover, disconnect column seal, and remove bezel.
- With shift lever in "P" position, remove shift indicator clip from steering column. Remove 2 upper screws and 2 inboard lower screws from cluster. Pull cluster back, disconnect speedometer cable and speed sensor electrical connector.
- Disconnect printed circuit electrical connector from cluster. Remove cluster from vehicle. Remove all sockets and bulbs from cluster case. Remove printed circuit from cluster. To install, reverse removal procedure.
