Removal & Installation (DeVille & Fleetwood)

Remove screw at each end of dashboard top cover. Remove screw above speedometer and screw inside glove box liner. Remove 4 screws at ends of defroster vents, pull center of cover free from spring clips and remove. To install, reverse removal procedure.

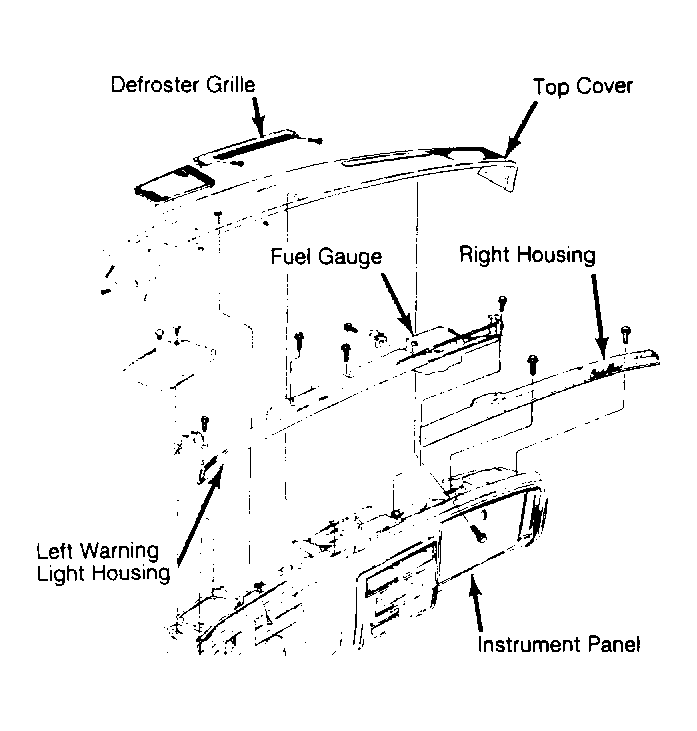

Fig 1: Cadillac Instrument Panel Top Cover (DeVille and Fleetwood)
G954
