Removal & Installation (Eldorado & Seville)

Remove 2 screws from left trim plate and air vent. Remove trim plate and headlight switch screws. Disconnect wiring and remove switch. To install, reverse removal procedure.

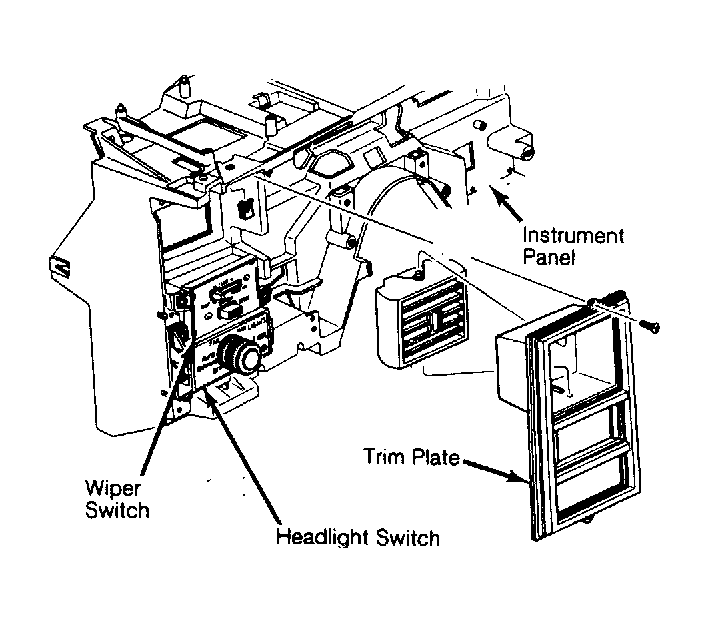

Fig 1: Left Trim Plate Removal (Eldorado Shown, Seville Similar)
G957
