Headlights - Automatic Twilight Sentinel: Wiring Diagram

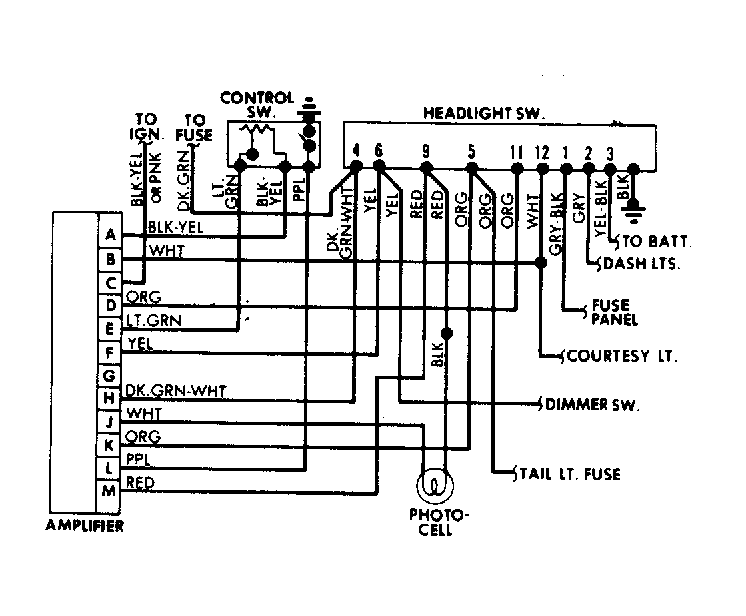

Fig 1: Twilight Sentinel Wiring Diagram

G888
