Oil Pump

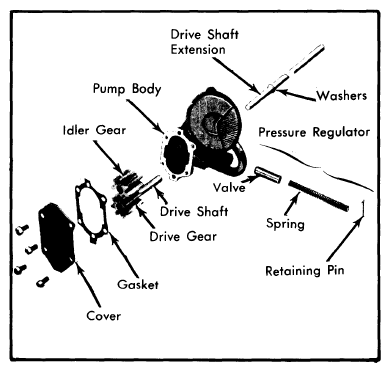

Located on rear main bearing cap. Do not remove drive shaft extension washers (serviced as a unit). Pressure relief valve clearance in bore should be 0.0025 - 0.005". End clearance of gears should be 0.0025 - 0.0065".
Located on rear main bearing cap. Do not remove drive shaft extension washers (serviced as a unit). Pressure relief valve clearance in bore should be 0.0025 - 0.005". End clearance of gears should be 0.0025 - 0.0065".
