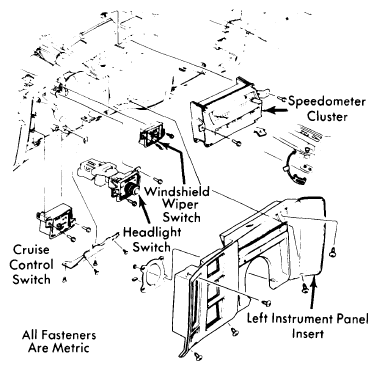

Speedometer Cluster Printed Circuit
Remove cluster and all sockets and lights from cluster case, then remove printed circuit.
NOTE:
Do not repair printed circuit board, if defective, it should be replaced.
To install circuit board, reverse removal procedures.
