Lower Right Instrument Panel & Accessory Switches

Remove radio knobs, springs, rings, and retaining nuts. Remove insert retaining screws through opening in top of glove box. Push accessory switch(es) until it pops out of insert. Disconnect bulbs and map light connector. To install, reverse removal procedure.

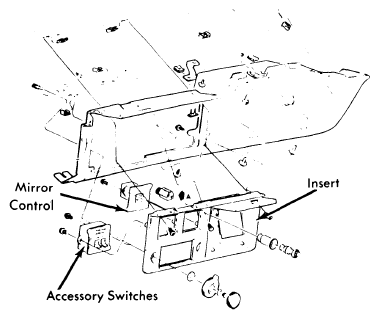

Fig 1: Cadillac Lower Right Instrument Panel (Seville)
G09344019Courtesy of GENERAL MOTORS COMPANY
