Hard Pedal

Grease or fluid on lining. Improper brake lining or fluid. Improper adjustment. Pedal linkage binding. Faulty master cylinder. Glazed linings. Defective brake drums. Defective proportioning valve.

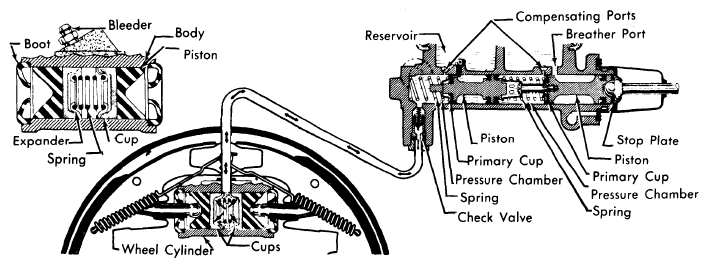

Fig 1: Hydraulic System for Drum Type Brakes (Typical)
G09339006Courtesy of NOT AVAILABLE
