- Place master cylinder in a vise. Remove reservoir cover and diaphragm type gasket. Depress piston and remove stop screw.
NOTE:
On all Cadillac models, except Seville, stop screw is not used.
- Remove lock ring from groove in end of bore or retainer and screw. Remove rear (primary) piston assembly.
CAUTION:
Do not disassemble rear piston assembly or change adjustment of screw.
- Remove front (secondary) piston with air pressure. If air pressure does not work, use wire hook to pull piston out end of cylinder. Remove front piston spring if it did not come out with piston. Remove splash seal and retainer outside rear of cylinder, if they are used.
- Remove tube seats to gain access to check valves. Use self-tapping removal kit if supplied in repair kit. If removal kit not available, use one of these methods. Thread a short screw into seat. Pry screw and seat out with a screwdriver. Another method is to drill a 13/64" hole through each seat. Then tap hole with a 1/4 -20 tap. Screw a tubing nut into outlet. Then insert a 1/4 -20 machine screw (with washer) through nut and into tube seat. Hold screw from turning. Unscrew the tubing nut to remove seat. Remove check valve and spring from drum brake outlet.
NOTE:
Ford does not recommend tube seat removal.

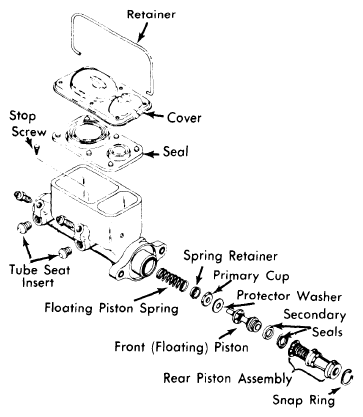

Courtesy of NOT AVAILABLE

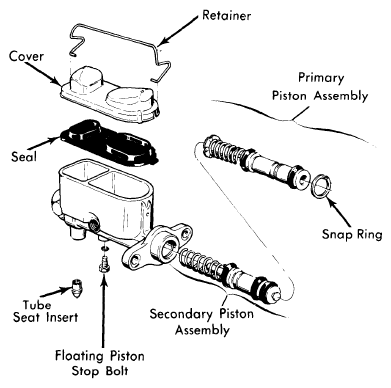

Courtesy of NOT AVAILABLE
