Wiring Diagrams - Sun & Moon Roofs - Electric
>>
Wiring Diagrams
Wiring Diagrams
Fig 1: Chrysler Corp. Electric Sunroof Wiring Diagram
Courtesy of NOT AVAILABLE
Fig 2: Ford Motor Co. Electric Sunroof Wiring Diagram
Courtesy of NOT AVAILABLE

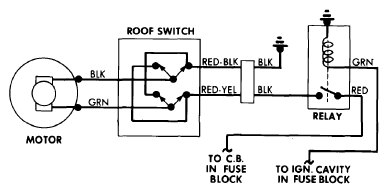

Fig 3: Buick Electric Sunroof Wiring Diagram Other General Motors Models Similar
Courtesy of NOT AVAILABLE
Courtesy of NOT AVAILABLE
Courtesy of NOT AVAILABLE
Courtesy of NOT AVAILABLE
