Wiring Diagrams

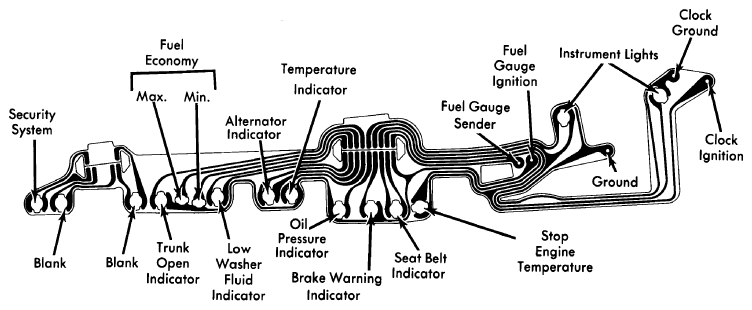

Fig 1: Cadillac (Except Seville And Eldorado) High-Level Indicator Lights And Fuel Gauge Cluster
G09307885Courtesy of GENERAL MOTORS COMPANY

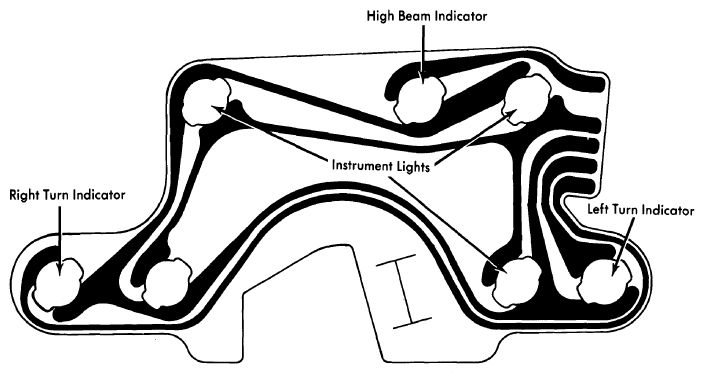

Fig 2: Cadillac (Except Seville And Eldorado) Speedometer Cluster
G09307886Courtesy of GENERAL MOTORS COMPANY

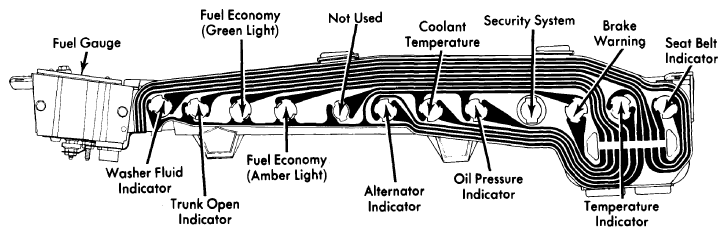

Fig 3: Seville High-Level Indicator Lights Cluster
G09307887Courtesy of GENERAL MOTORS COMPANY

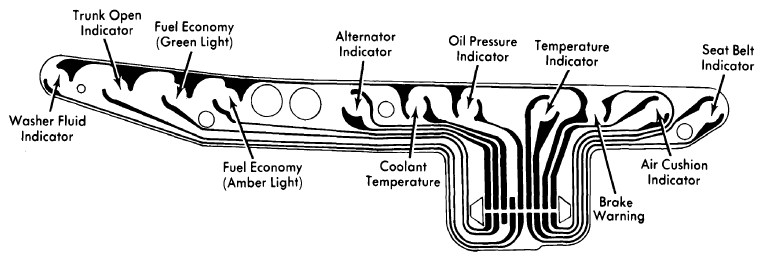

Fig 4: Eldorado High-Level Indicator Lights Cluster
G09307888Courtesy of GENERAL MOTORS COMPANY

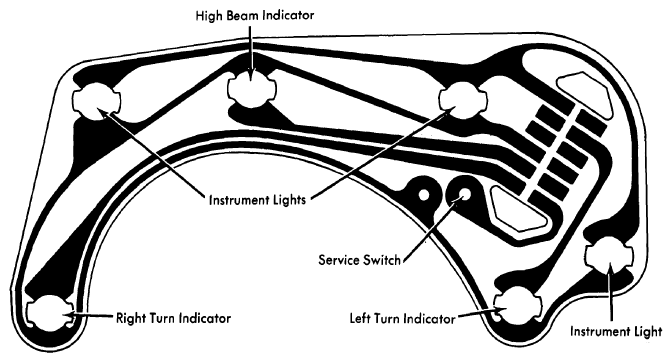

Fig 5: Seville And Eldorado Speedometer Cluster
G09307889Courtesy of GENERAL MOTORS COMPANY
