Slipping Clutch

If motor runs freely and panel fails to close completely, clutch in auxiliary drive is slipping and requires adjustment. Remove auxiliary drive cover and tighten adjusting screw. If clutch still slips, remove screw and add washer(s), supplied with operating handle in glove box. Tighten screw and check operation.

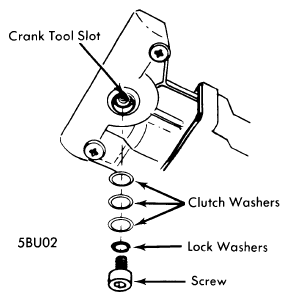

Fig 1: CLUTCH SCREW & ADJUSTING WASHERS
G09321489Courtesy of NOT AVAILABLE
