Wiring Diagrams

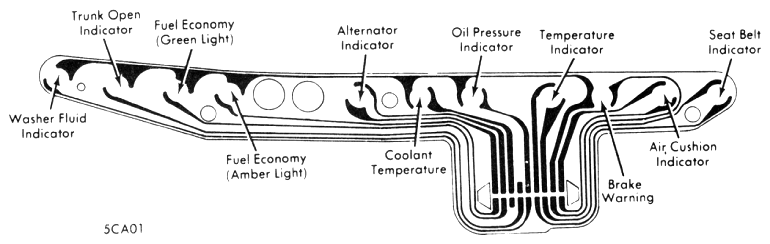

Fig 1: Cadillac, Exc. Seville (Upper)
G09306595Courtesy of GENERAL MOTORS COMPANY

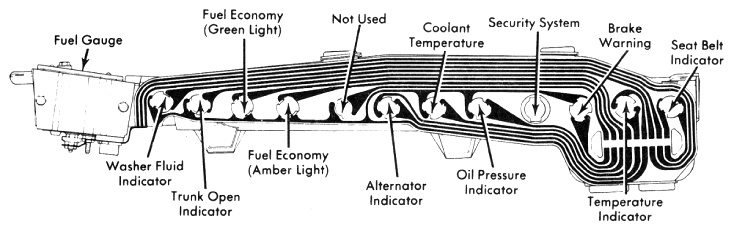

Fig 2: Cadillac, Seville (Upper)
G09306596Courtesy of GENERAL MOTORS COMPANY

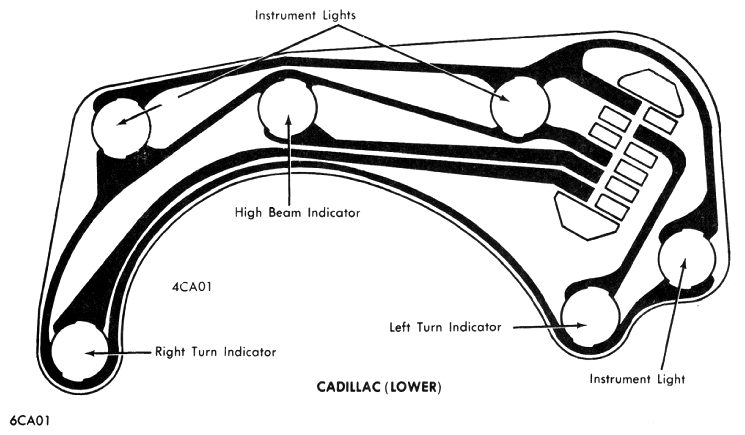

Fig 3: Cadillac (Lower)
G09306597Courtesy of GENERAL MOTORS COMPANY
