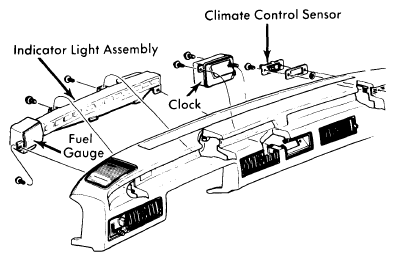

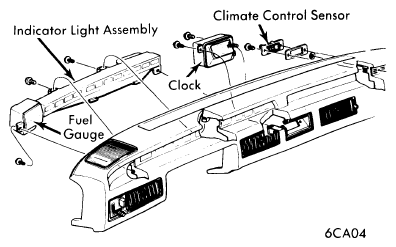

Indicator Lights, Printed Circuit & Fuel Gauge
Remove instrument panel top cover as previously described. Remove indicator bulbs and sockets from printed circuit. Remove printed circuit retaining screws, then remove printed circuit. Remove fuel gauge, then remove housing to top cover retaining screws. Remove housing, housing cover, and lenses. To install, reverse removal procedure.
