Airbag Front Passenger Presence Module Replacement
NOTE:

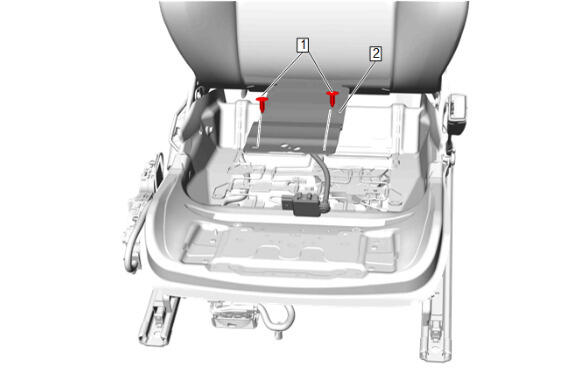

Callout items in the following chart represent components shown in graphic above.
Airbag Front Passenger Presence Module Replacement
| Callout | Component Name |
|---|---|
| Preliminary Procedure Front Seat Cushion Cover and Pad Replacement |
|
| 1 | Airbag Front Passenger Presence Module Fastener [2x] |
| 2 | Airbag Front Passenger Presence Module Procedure Transfer components as necessary. |
