Sunroof Window Motor Replacement

Courtesy of GENERAL MOTORS COMPANY

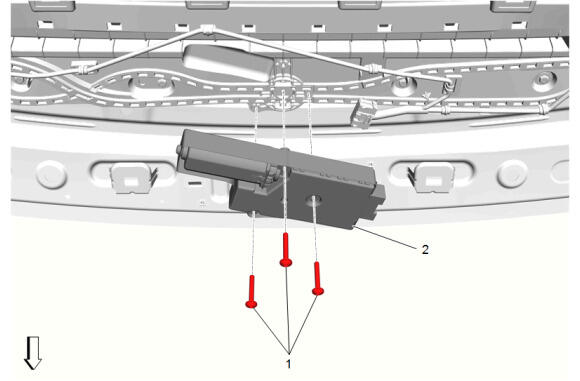

NOTE: Callout items in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure Headlining Trim Panel Replacement (with C3U)Headlining Trim Panel Replacement (without C3U)
1	Sunroof Window Motor Bolt [3x] CAUTION: Fastener Caution Tighten 4 N.m (35 lb in)
2	Sunroof Window Motor Procedure Disconnect the electrical connector. After installation, perform the Initialization process. Sunroof/Sunshade Motor Initialization

Callout

Component Name

Sunroof Window Motor Bolt [3x]

CAUTION:

Tighten
4 N.m (35 lb in)

Sunroof Window Motor

Procedure

Disconnect the electrical connector.
After installation, perform the Initialization process. Sunroof/Sunshade Motor Initialization
