Front Seat Removal and Installation

Courtesy of GENERAL MOTORS COMPANY

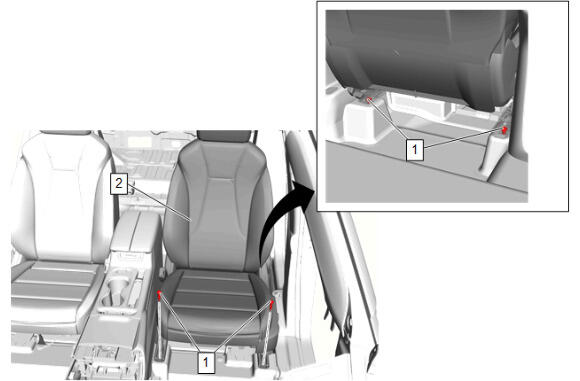

NOTE: Callout items in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure Disable the SIR system. SIR Disabling and Enabling
1	Front Seat Bolt [4x] CAUTION: refer to Fastener Caution Tighten 45 N.m (33 lb ft)
2	Front Seat Procedure Engage the seat adjuster locking retainer to keep the seat track locked in position during removal, if equipped. Disconnect the electrical connector. With the aid of an assistant, remove the front seat. Disengage the seat adjuster locking retainer to unlock the seat track after installation, if equipped. Enable the SIR System. SIR Disabling and Enabling

Callout

Component Name

Preliminary Procedure
Disable the SIR system. SIR Disabling and Enabling

Front Seat Bolt [4x]

CAUTION:

Tighten
45 N.m (33 lb ft)

Front Seat

Procedure

Engage the seat adjuster locking retainer to keep the seat track locked in position during removal, if equipped.
Disconnect the electrical connector.
With the aid of an assistant, remove the front seat.
Disengage the seat adjuster locking retainer to unlock the seat track after installation, if equipped.
Enable the SIR System. SIR Disabling and Enabling
