Headlamp Control Module Replacement

Courtesy of GENERAL MOTORS COMPANY

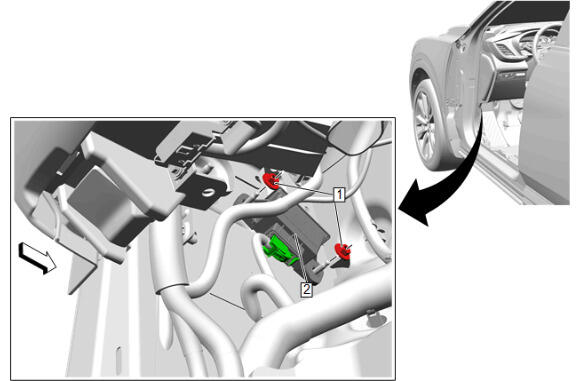

NOTE: Callout items in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure Instrument Panel Lower Trim Panel Insulator Replacement - Left Side
1	Headlamp Control Module Nut [2x] CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
1	Headlamp Control Module Procedure Disconnect the electrical connector. Perform the necessary programming and setup procedure:Control Module References

Callout

Component Name

Headlamp Control Module Nut [2x]

CAUTION:

Tighten
9 N.m (80 lb in)

Headlamp Control Module

Procedure
