Radio Speaker Amplifier Replacement

Courtesy of GENERAL MOTORS COMPANY

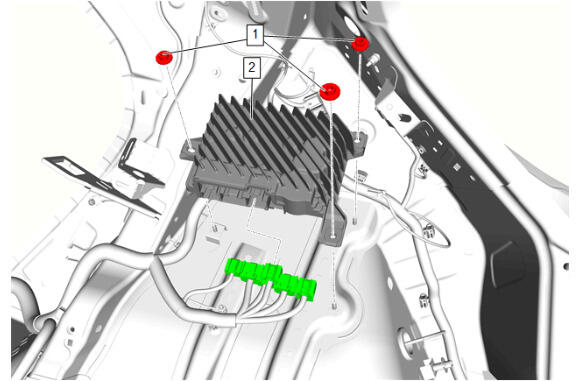

NOTE: Callout items in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure Reposition the right side quarter lower rear trim panel. Quarter Lower Rear Trim Panel Replacement
1	Radio Speaker Amplifier Nut [3x] CAUTION: Fastener Caution Tighten 6 N.m (53 lb in)
2	Radio Speaker Amplifier Procedure Disconnect the electrical connectors. Perform the necessary programming and setup procedure:Control Module References

Callout

Component Name

Preliminary Procedure
Reposition the right side quarter lower rear trim panel. Quarter Lower Rear Trim Panel Replacement

Radio Speaker Amplifier Nut [3x]

CAUTION:

Tighten
6 N.m (53 lb in)

Radio Speaker Amplifier

Procedure
