Home >> Buick >> 2024 >> Envision Preferred >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Instrument Panel, Displays And Gauges >> Schematic Wiring Diagrams >> Instrument Cluster Wiring Schematics >> Indicators

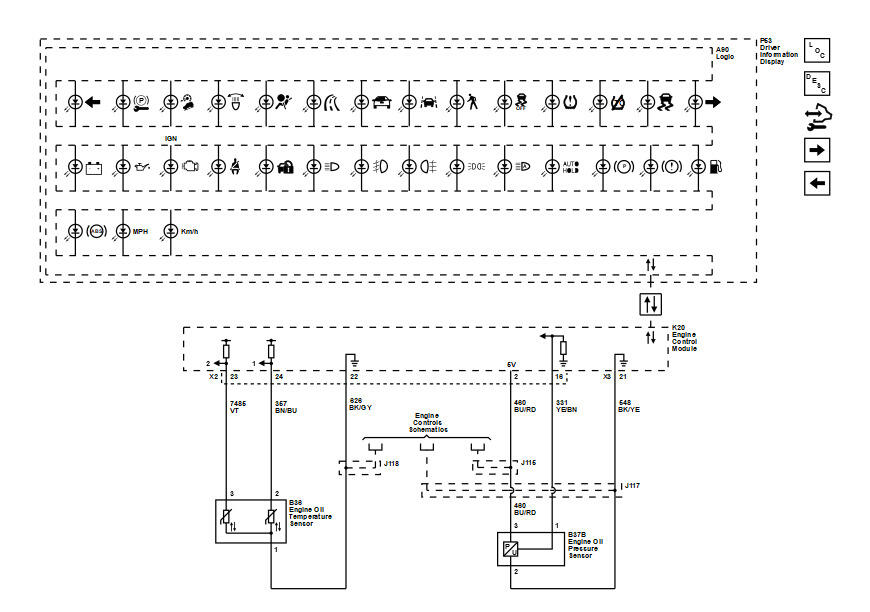

Instrument Cluster Wiring Schematics: Indicators

GM6373627

Courtesy of GENERAL MOTORS COMPANY
