Driver Information Display Replacement
Driver Information Display Replacement

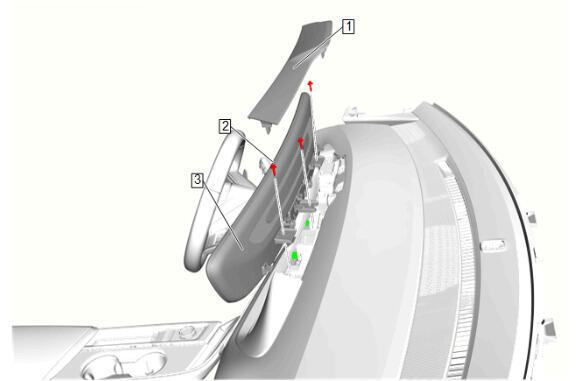

| Callout | Component Name |
|---|---|
| 1 | Instrument Panel Upper Trim Panel Cover |
| 2 | Driver Information Display Bolt[3x]
CAUTION:
refer to Fastener Caution Tighten 2.5 N.m (22 lb in) |
| 3 | Driver Information Display Procedure Disconnect the electrical connector. |
