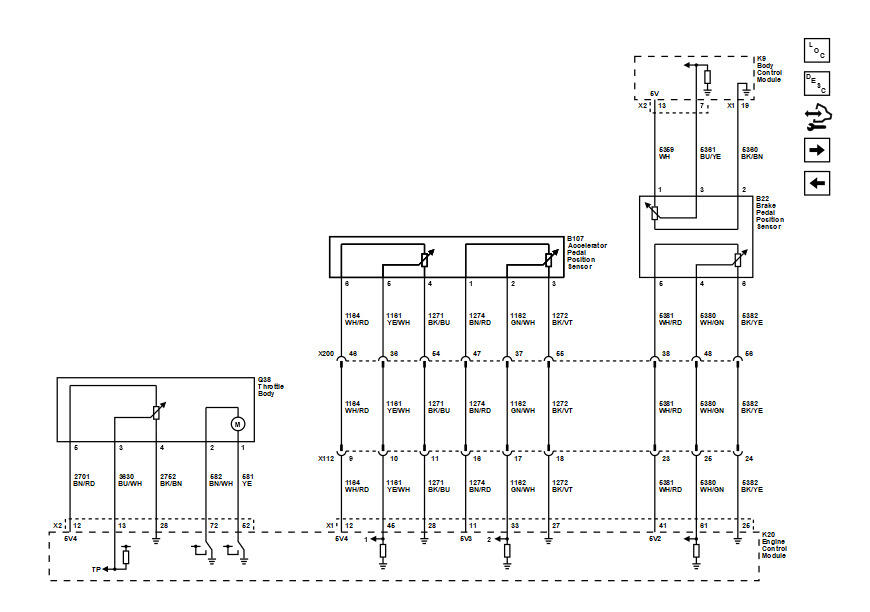

Throttle Body, Accelerator Pedal Position Sensor, and Brake Pedal Position Sensor (Chevrolet with LE2)

GM4926201

Courtesy of GENERAL MOTORS COMPANY
