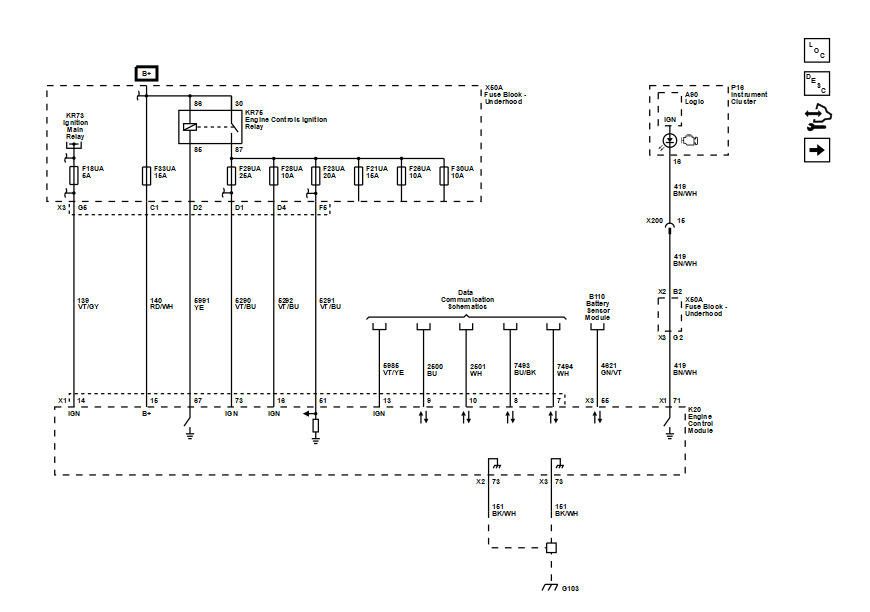

Module Power, Ground, Serial Data, and MIL (Chevrolet with LE2)

GM4926196

Courtesy of GENERAL MOTORS COMPANY
