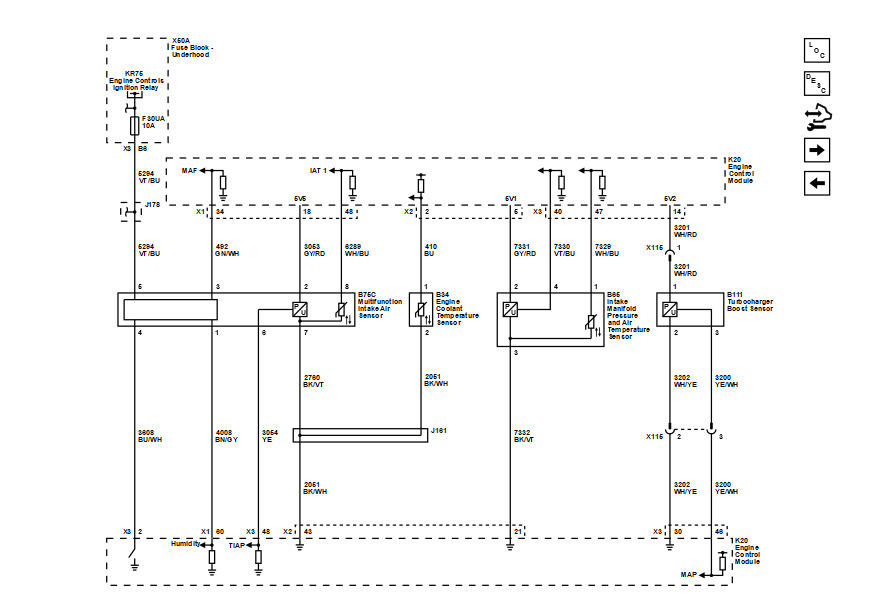

Intake, Manifold, and Engine Coolant Sensors (Chevrolet with LE2)

GM4926199Courtesy of GENERAL MOTORS COMPANY
