Windshield Wiper Transmission Replacement

Courtesy of GENERAL MOTORS COMPANY

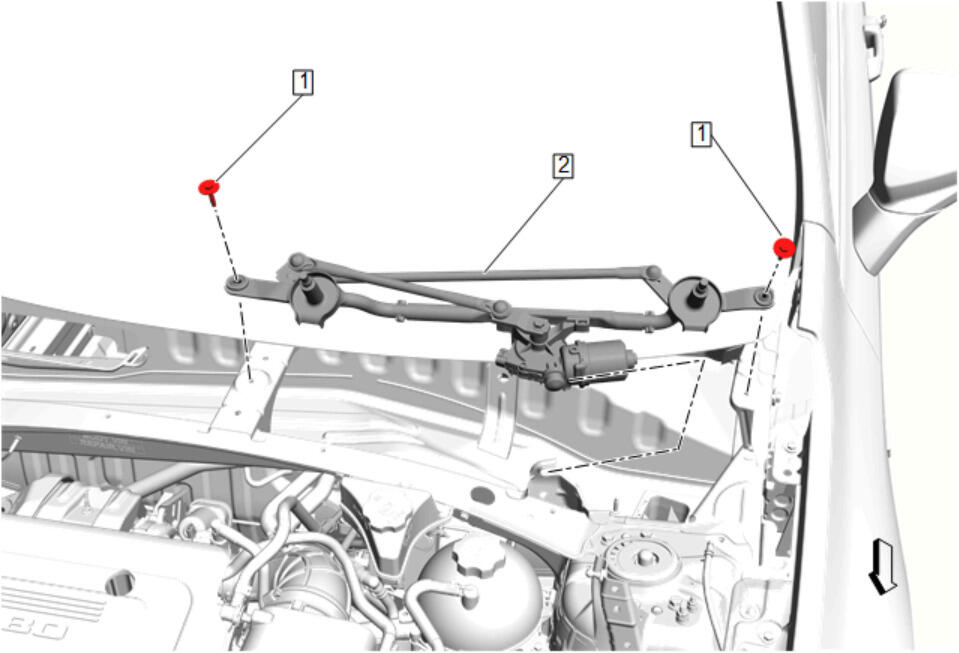

NOTE: Callout items in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure Windshield Wiper System Module Shield Replacement
1	Windshield Wiper Transmission Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 8 N.m (71 lb in)
2	Windshield Wiper Transmission Procedure Disconnect the electrical connector. Remove the windshield wiper transmission from the plenum brackets. Transfer components as necessary.

Callout

Component Name

Windshield Wiper Transmission Bolt [2x]

CAUTION:

Tighten
8 N.m (71 lb in)

Windshield Wiper Transmission

Procedure
