Installation Procedure

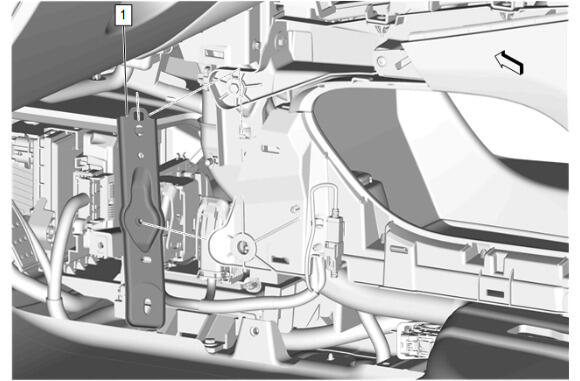

  1. GM6043679Courtesy of GENERAL MOTORS COMPANY

    Connect and position the wiring harness.

  2. Instrument Panel Tie Bar Brace - Left Side (1) - Install

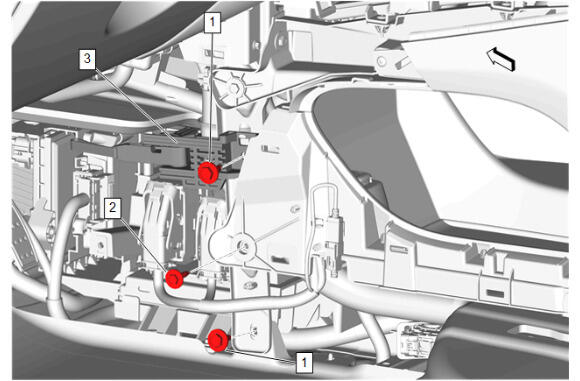

  3. GM6043678Courtesy of GENERAL MOTORS COMPANY

    Install the electronic transmission range selector manual park release cable handle (3) to the brace. Electronic Transmission Range Selector Manual Park Release Cable Replacement

    4. CAUTION:

    Refer to Fastener Caution .

  4. Front Floor Console Bolt@Instrument Panel Tie Bar Brace (2) - Install and tighten 9 N.m (80 lb in)
  5. Instrument Panel Tie Bar Brace Bolt (1) - Install and tighten [2x] 22 N.m (16 lb ft)
  6. GM4801332Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel - Left Side (1) - Install - Front Floor Console Extension Panel Replacement - Left Side

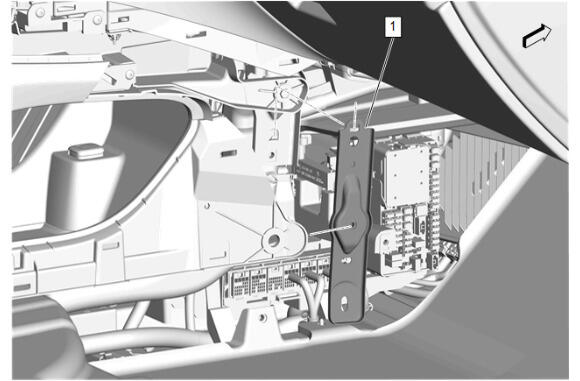

  7. GM6043677Courtesy of GENERAL MOTORS COMPANY

    Connect and position the wiring harness.

  8. Instrument Panel Tie Bar Brace - Right Side (1) - Install

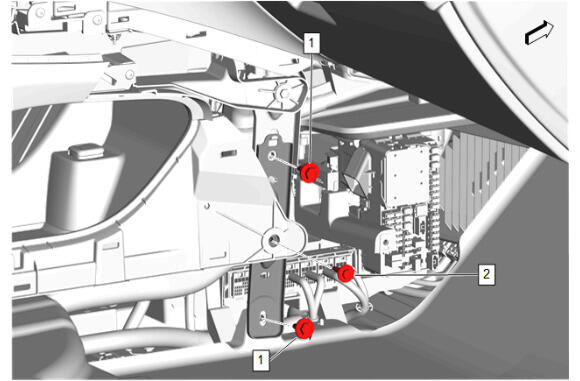

  9. GM6043676Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Bolt@Instrument Panel Tie Bar Brace (2) - Install and tighten 9 N.m (80 lb in)

  10. Instrument Panel Tie Bar Brace Bolt (1) - Install and tighten [2x] 22 N.m (16 lb ft)
  11. GM4800359Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel - Right Side (2) - Install - Front Floor Console Extension Panel Replacement - Right Side
