Installation Procedure
With the aid of an assistant, install the instrument panel (1) to the instrument panel tie bar and the locator pins.
- Reposition the instrument panel wiring harness into the vehicle position as was noted in the removal and connect the fasteners securing the instrument panel wiring harness to the instrument panel (1).
Make sure the locator stud and tie bar bracket tab (1) are seated.
Make sure the locator stud and tie bar bracket tab (1) are seated.
- CAUTION:
Refer to Fastener Caution .
Instrument Panel Airbag Bolt (2) - Install and tighten [3x] 9 N.m (80 lb in)
- Clip the airbag electrical connector to the instrument panel tie bar.
- Connect the instrument panel airbag electrical connector to the instrument panel harness. (1)
Instrument Panel Bolt (1) - Install and tighten [6x] 2.5 N.m (22 lb in)

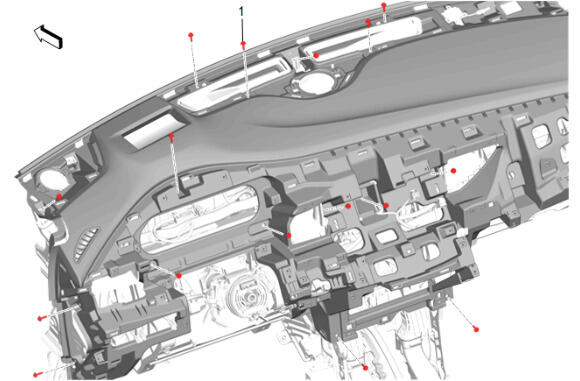

Instrument Panel Bolt (1) - Install and tighten [16x] 2.5 N.m (22 lb in)
Instrument Cluster (2) - Install - Instrument Cluster Replacement
Instrument Panel Cluster Trim Plate (1) - Install - Instrument Panel Cluster Trim Plate Replacement
Front Floor Console Auxiliary Cooling Intermediate Duct (1) - Install - Front Floor Console Auxiliary Cooling Intermediate Duct Replacement
Install the left (2) and right instrument panel center air outlet (3). Instrument Panel Center Air Outlet Replacement
Instrument Panel Compartment (1) - Install - Instrument Panel Compartment Replacement
Instrument Panel Trim Pad - Right Side (1) - Install - Instrument Panel Trim Pad Replacement - Right Side
Heater and Air Conditioning User Interface Control (1) - Install - Heater and Air Conditioning User Interface Control Replacement
Instrument Panel Center Trim Plate Applique (1) - Install - Instrument Panel Center Trim Plate Applique Replacement
Instrument Panel Trim Plate Applique - Right Side (2) - Install - Instrument Panel Trim Plate Applique Replacement - Right Side
Instrument Panel Knee Bolster (1) - Install - Instrument Panel Knee Bolster Replacement
Install the left front side door sill garnish molding. Front Side Door Sill Garnish Molding Replacement
Instrument Panel Lower Trim Panel (1) - Install - Instrument Panel Lower Trim Panel Replacement
Instrument Panel Lower Trim Panel Insulator - Left Side (2) - Install - Instrument Panel Lower Trim Panel Insulator Replacement - Left Side
Hood Primary Latch Release Cable Handle (1) - Install - Hood Primary Latch Release Cable Handle Replacement
Instrument Panel Trim Pad - Left Side (2) - Install - Instrument Panel Trim Pad Replacement - Left Side
Instrument Panel Trim Plate Applique - Left Side (2) - Install - Instrument Panel Trim Plate Applique Replacement - Left Side
Instrument Panel Center Trim Pad (1) - Install - Instrument Panel Center Trim Pad Replacement
- NOTE:
Left side shown, right side similar.
Install the left and right instrument panel outer trim cover (1). Instrument Panel Outer Trim Cover Replacement

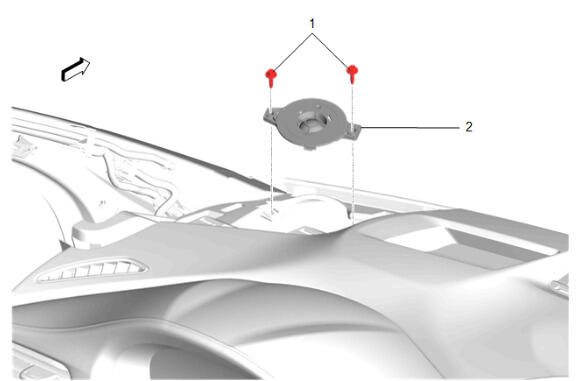

Install the left radio front speaker (2). Radio Front Speaker Replacement - Left Side (with UV6)
Radio Front Center Speaker (2) - Install - Radio Front Center Speaker Replacement

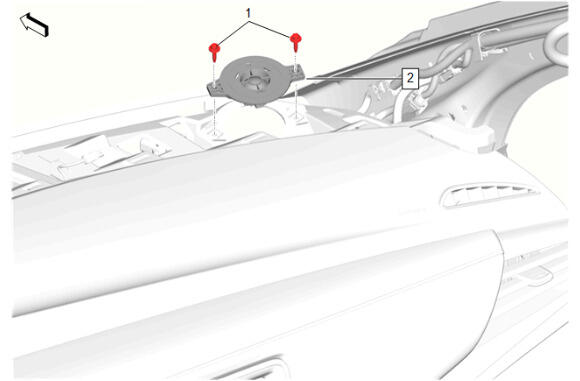

Install the right radio front speaker (2). Radio Front Speaker Replacement - Right Side (with UV6)

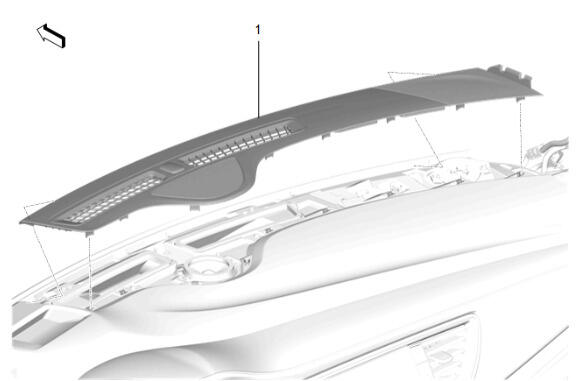

Instrument Panel Extension (1) - Install - Instrument Panel Extension Replacement (with UV6)
- NOTE:
Left side shown, right side similar.
Windshield Garnish Molding- Left Side and Right Side (1) - Install - Windshield Garnish Molding Replacement
Front Floor Console (1) - Install - Front Floor Console Replacement
Steering Wheel (2) Install - Steering Wheel Replacement
Windshield Wiper and Washer Switch (1) Install - Windshield Wiper and Windshield Washer Switch Replacement
Turn Signal Switch (1) Install - Turn Signal Switch Replacement
