Installation Procedure

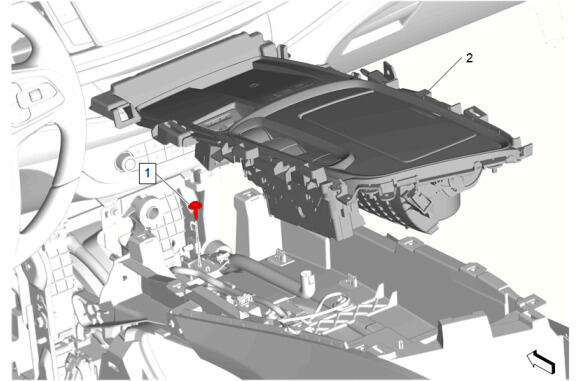

  1. GM6152033Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  2. Front Floor Console Trim Plate (2) - Move into position
    3. CAUTION:

    Refer to Fastener Caution .

    NOTE:

    Refer to the procedure link for torque specification.

  4. Front Floor Console Auxiliary Cooling Intermediate Duct Bolt (1) - Install - Front Floor Console Auxiliary Cooling Intermediate Duct Replacement

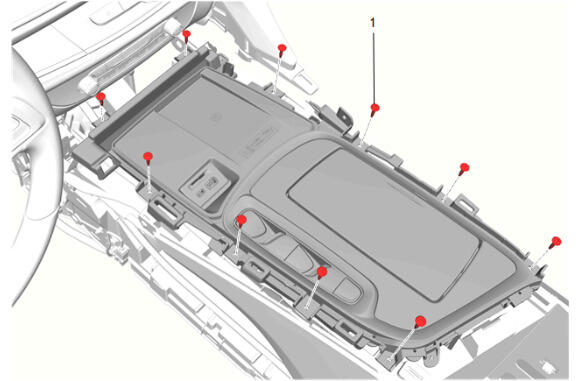

  5. GM6020733Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Trim Plate Bolt (1) - Install and tighten [10x] 9 N.m (80 lb in)

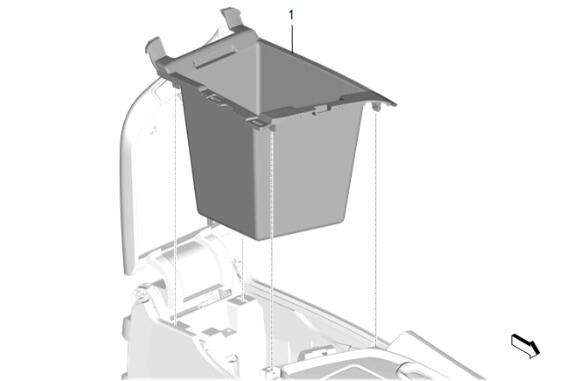

  6. GM6049351Courtesy of GENERAL MOTORS COMPANY
  7. Front Floor Console Compartment (1) - Install
  8. Connect the electrical connectors.

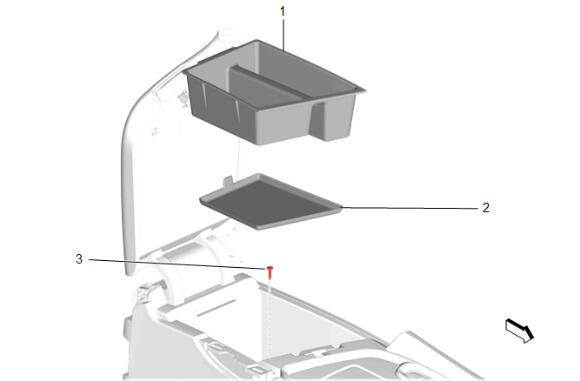

  9. GM6049350Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Bolt (3) - Install and tighten 2.5 N.m (22 lb in)

  10. Front Floor Console Center Compartment Liner (2) - Install
  11. Front Floor Console Armrest Stowage Tray (1) - Install
  12. GM4799105Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Rear Trim Panel (1) - Install - Front Floor Console Rear Trim Panel Replacement

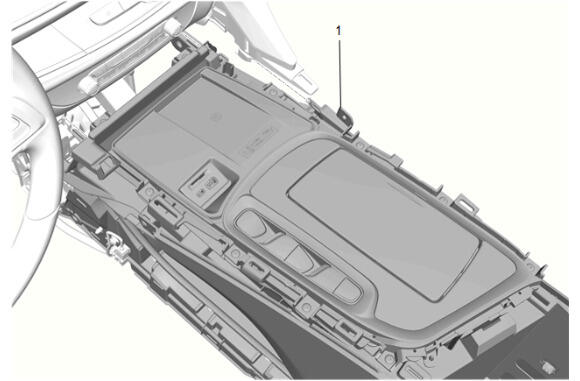

  13. GM6020732Courtesy of GENERAL MOTORS COMPANY

    Slide the front floor console (1) back into position.

  14. When installing the front floor console take care in seating the cooling duct.
  15. GM4802050Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Bolt@Front Floor Console Bracket (2) - Install and tighten [5x] 9 N.m (80 lb in)

  16. Front Floor Console Bolt Access Hole Cover (1) - Install
  17. GM4802048Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Bolt@Front Floor Console Bracket (2) - Install and tighten [5x] 9 N.m (80 lb in)

  18. Front Floor Console Bolt Access Hole Cover (1) - Install
  19. GM4794592Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Bolt (1) - Install and tighten [2x] 2.5 N.m (22 lb in)

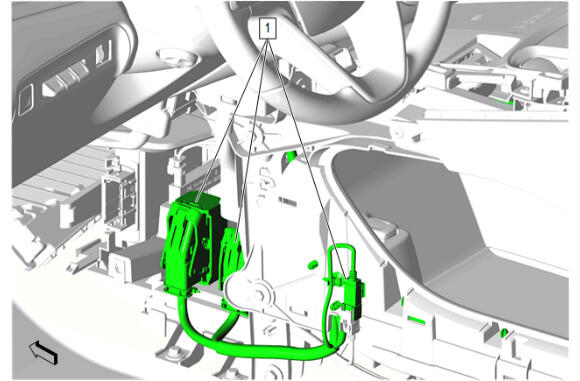

  20. GM6049348Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors. (1)

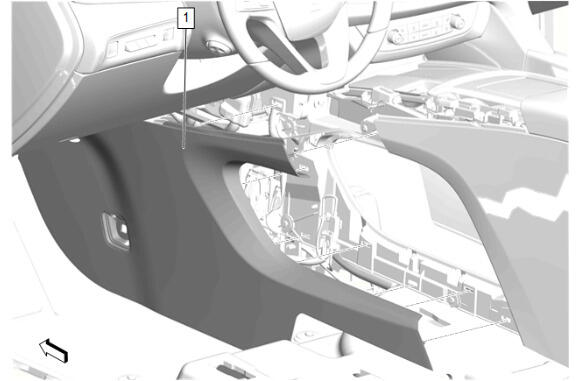

  21. GM6049347Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel - Left Side (1) - Install - Front Floor Console Extension Panel Replacement - Left Side

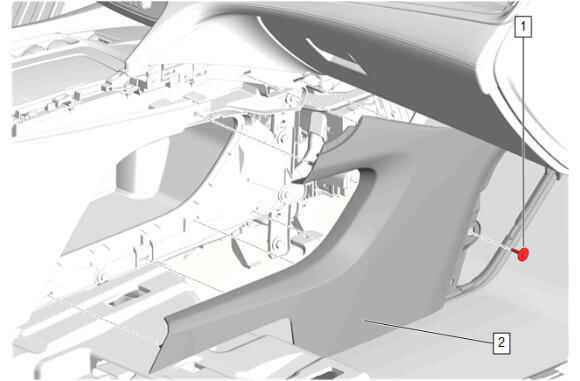

  22. GM6049346Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel - Right Side (2) - Install - Front Floor Console Extension Panel Replacement - Right Side

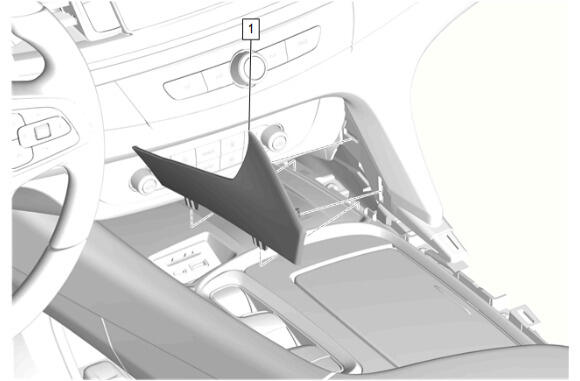

  23. GM6049345Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Center Trim Panel (1) - Install - Instrument Panel Lower Center Trim Panel Replacement

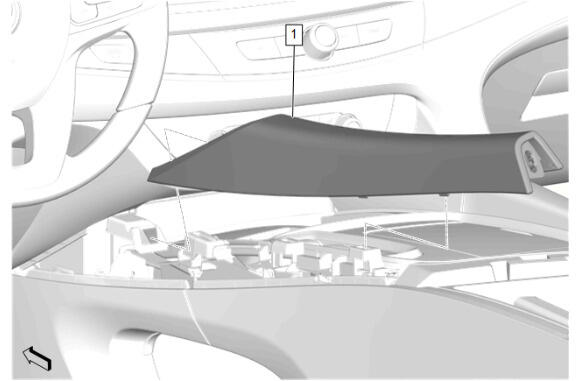

  24. GM6049344Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Applique - Left Side (1) - Install - Front Floor Console Applique Replacement - Left Side

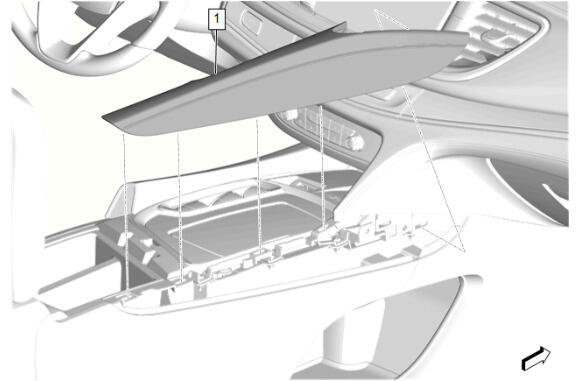

  25. GM6049343Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Applique - Right Side (1) - Install - Front Floor Console Applique Replacement - Right Side
