Range Selector Lever Cable Adjustment
- Set the park brake and chock the wheels.
- Air Cleaner Assembly - Remove - Air Cleaner Assembly Replacement

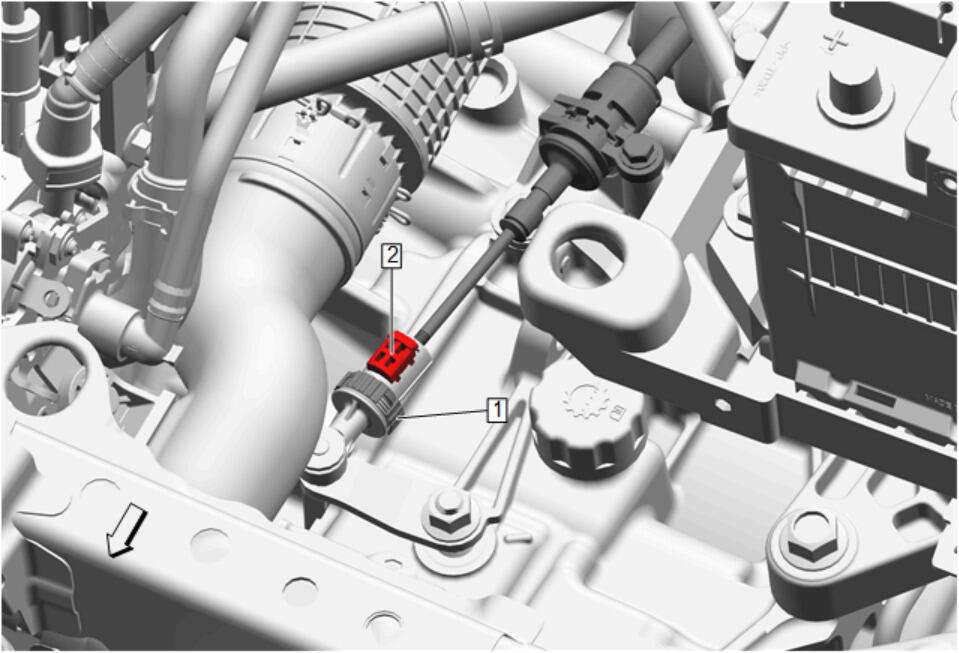

Slide the retainer lock (1) forward to expose the cable adjustment retainer (2).
- Using a suitable tool, raise the cable adjustment retainer (2) to the unlock position.
- Verify that the range selector lever cable lever is in position "P" by turning the range selector lever cable lever counterclockwise.
Verify that the transmission control lever (1) is in position "P".
Depress the cable adjustment retainer (2) locking the retainer completely.
- Slide the retainer lock (1) rearward to cover the cable adjustment retainer (2).
- Check to ensure that all available shift controls operate properly.
- Ensure the shifter cannot be shifted out of the Park position unless the brake is applied.
- Air Cleaner Assembly - Install - Air Cleaner Assembly Replacement
WARNING:
After installing the transmission range selector shift cable, ensure the shifter cannot be shifted out of the Park position unless the brake is applied. Failure to perform this task can result in the shifter moving out of the Park position unintentionally, causing potential vehicle damage and bodily injury.
